PRODUCTS > HSE-XSP12L-5 Series

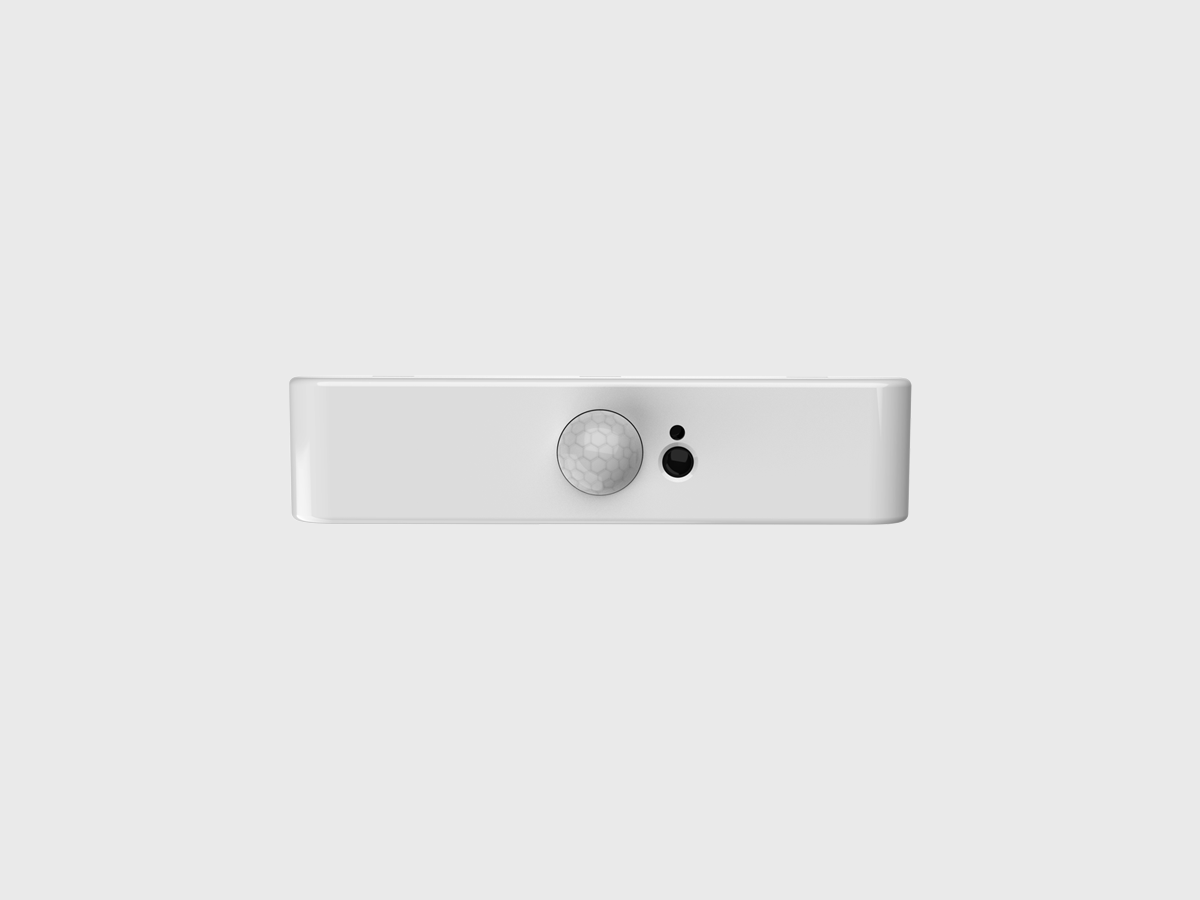

HSE-XSP12L-5 Series

FEATURES
• 12VDC , 0-10V Dimming.
• Installation Height: 3m/9.84ft Max.
• Daylight Harvesting + PIR analog sensing technology.
• Remote control , APP control for BLE version.

Technical Specifications

Component Type	High - bay PIR Sensor
Input Voltage	DC 10-15V
Input Current	<30mA
Stand-by Power	DC 10V@<0.5W
Control Method	ON / OFF, DIM 0-10V
Control Device	Remote Control #HD06R & HSE WISE APP
Bluetooth Transmit	30m / 98 ft
Radio Frequency	2.4GHz（2402~2480MHz）
Bluetooth Version	5.4

Detection Angle	Fresnel Lens ≤120 °
Mounting Heigh	≤3m/9.84
Detection Range	Radius: 2-4m 6.56-13ft
Working Temp	-35°C to 70°C
IP Rating	IP20
Warranty	5 years

Spec Sheet

HSE-SP12L-5 HSE-BSP12L-5.pdf

Online browsing Download
