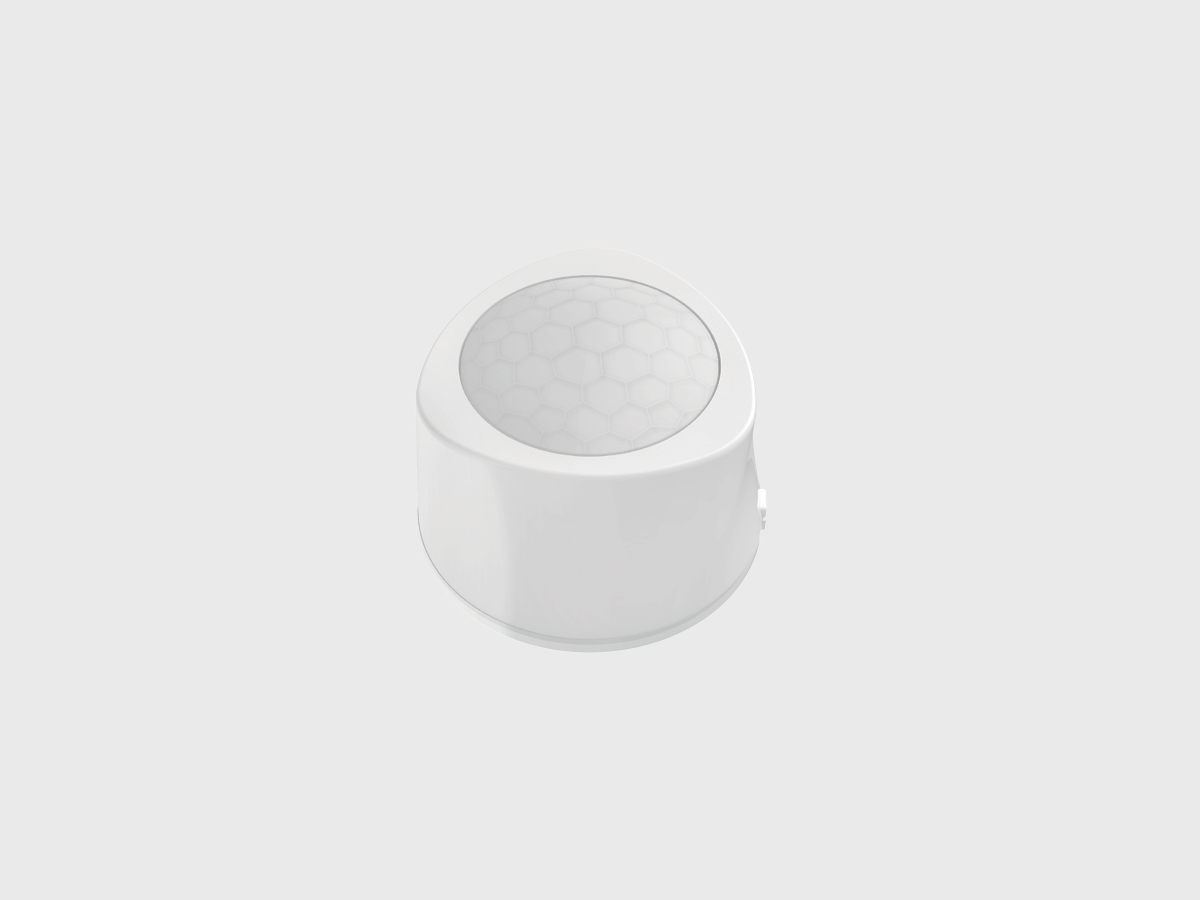

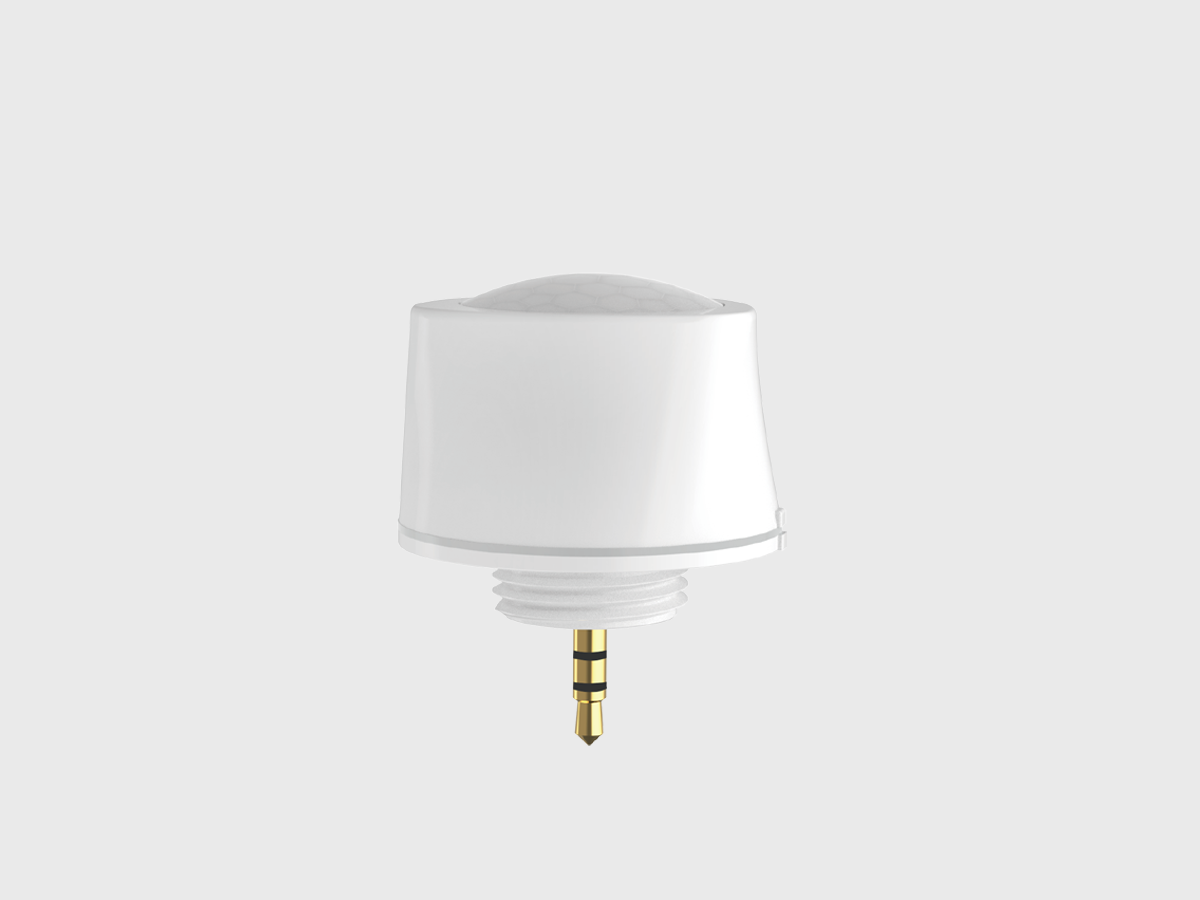

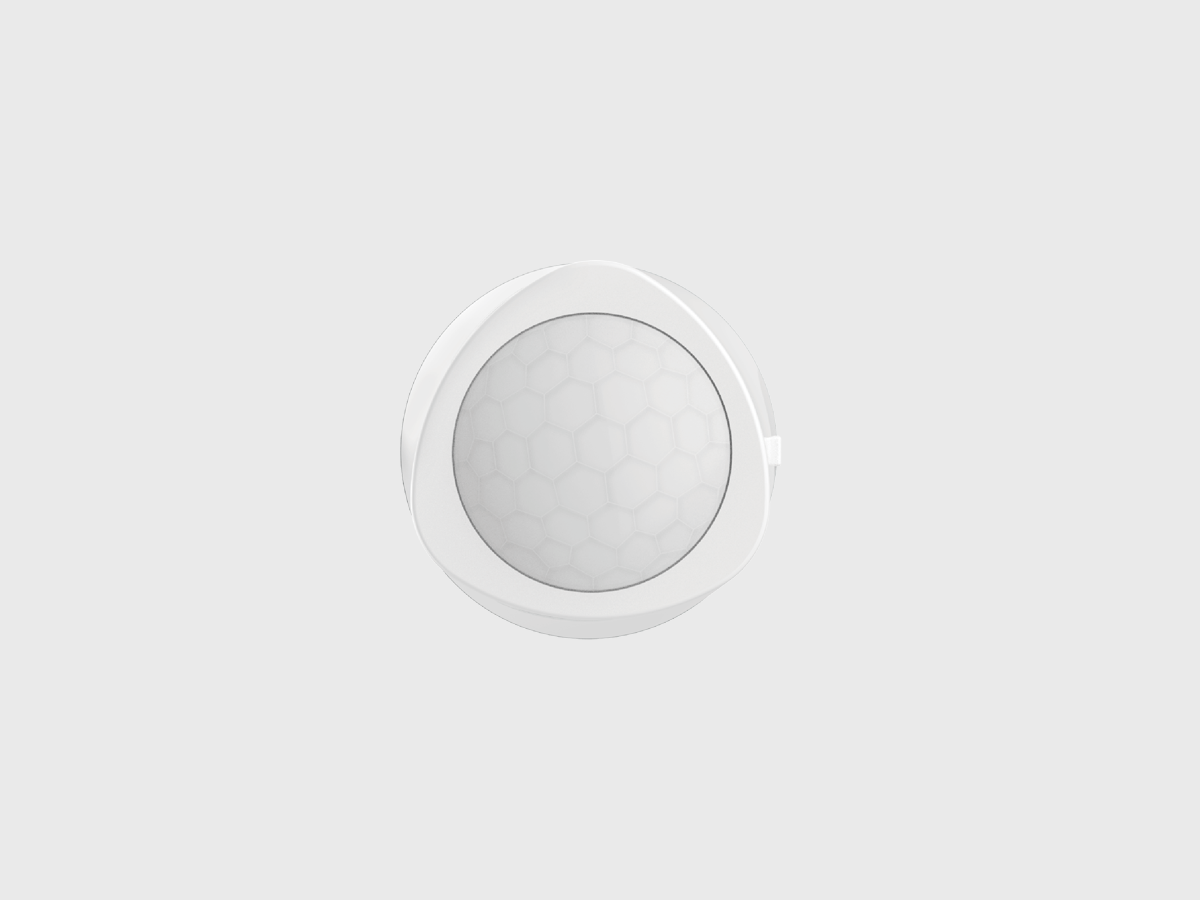

HSE-XSP19L Series

FEATURES
• 12 VDC, 0 - 10V Dimming
• Remote control , APP control for BLE version.
• With Daylight Harvesting and Photocell Function.
• ONE for ALL Installations Parterning With Different Receptacles & Brackets.
• UFO high bay, Linear high bay, area light.

Technical Specifications

Component Type	High - bay PIR Sensor
Input Voltage	DC 10.5-15V
Input Current	<30mA (Regular-Version) <20mA (Bluetooth-Version)
Stand-by Power	DC 10V@<0.5W
Control Method	ON/OFF, DIM 0-10V
Control Device	Remote Control #HD06R & HSE WISE APP
Bluetooth Transmit	30m / 98 ft
Radio Frequency	2.4GHz（2402~2480MHz）
Bluetooth Version	5.4

Detection Angle	120-360° Fersnel Lens
Mounting Heigh	8m / 26.24ft Max.
Detection Range	Radius: 3-7m (9.84 - 22.97ft)
Working Temp	-20°C to 60°C
IP Rating	IP65
Warranty	5 years
