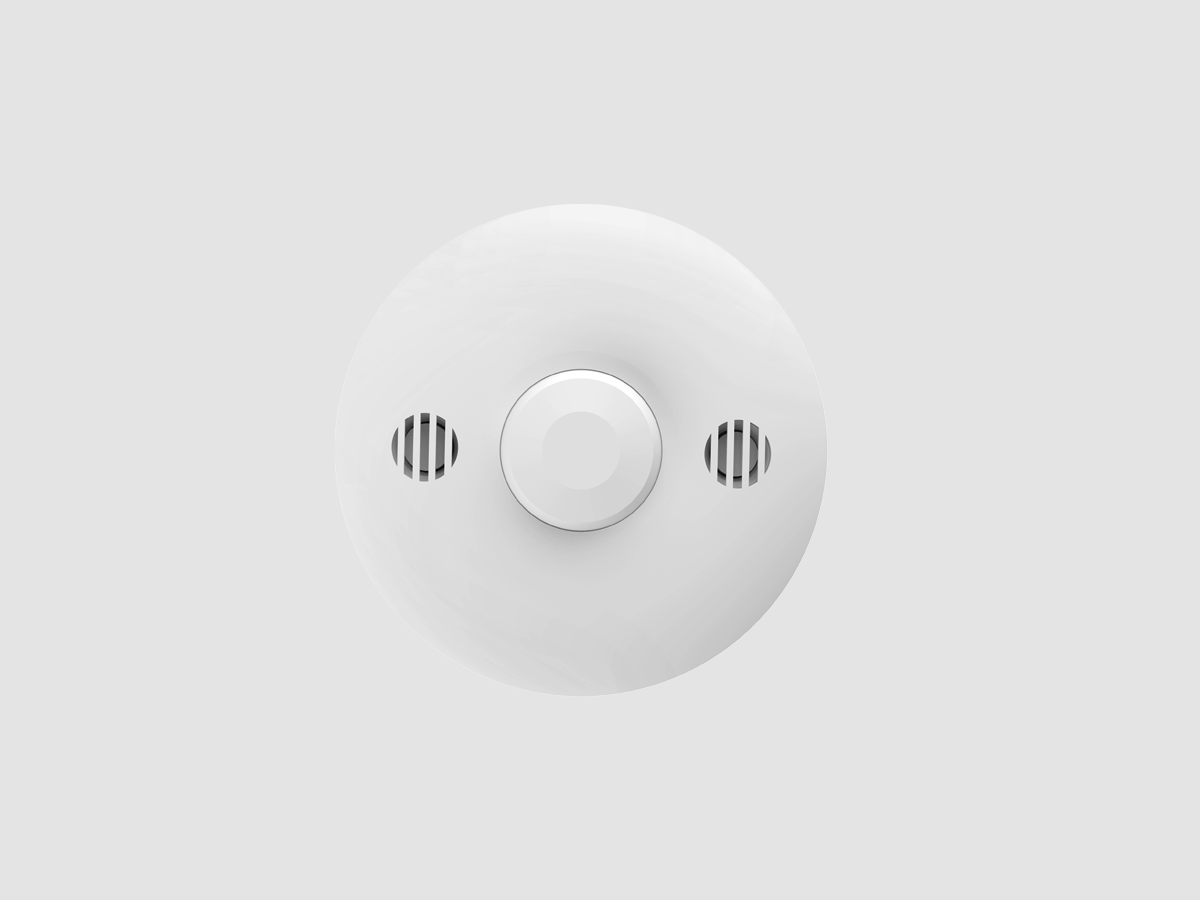

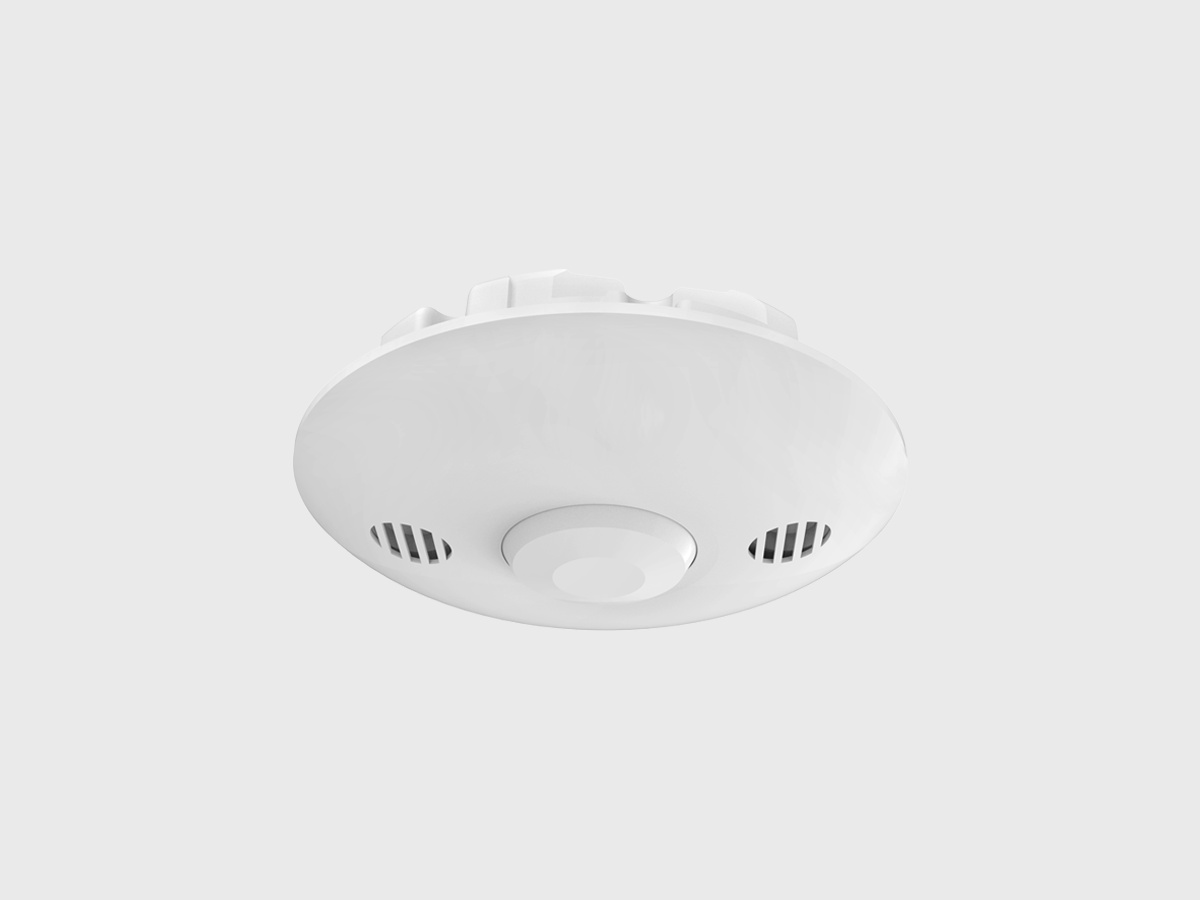

HSE-SP7L-5 Series

FEATURES
• Input Voltage : 120-347VAC
• Ultrasonic frequency :40kHZ
• Specially Designed for Ceiling or Recessed Mounted
• Application：Strip, Wrap, Panel, Troffer

Technical Specifications

Component Type	Ceiling Dual Sensor
Input Voltage	120 / 230(single phase) / 277 / 347 VAC
Stand-by Power	<1.0W(230V)
Control Method	ON/OFF
Warm-up Period	50±2s
Detection Angle	Fresnel Lens <120°
Mounting Height	<4M/13ft
Detection Range	Radius: 3-7m 9.84-22.97ft

Control Device	Dial code setting
Ultrasound Detection Area	H / L
PIR Detection Area	H / L
Operating Temperature	-20℃~+60℃
IP Rating	IP20
Warranty	5 years
