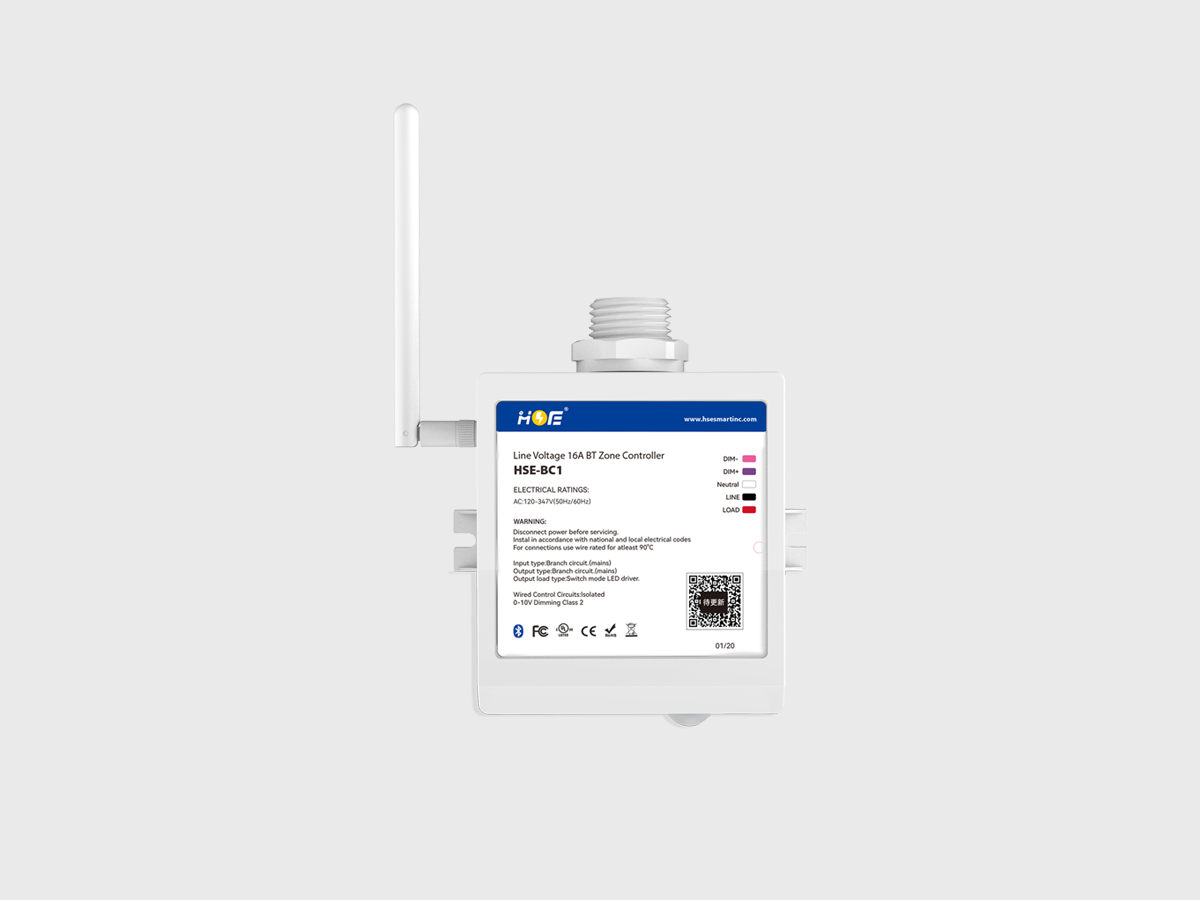

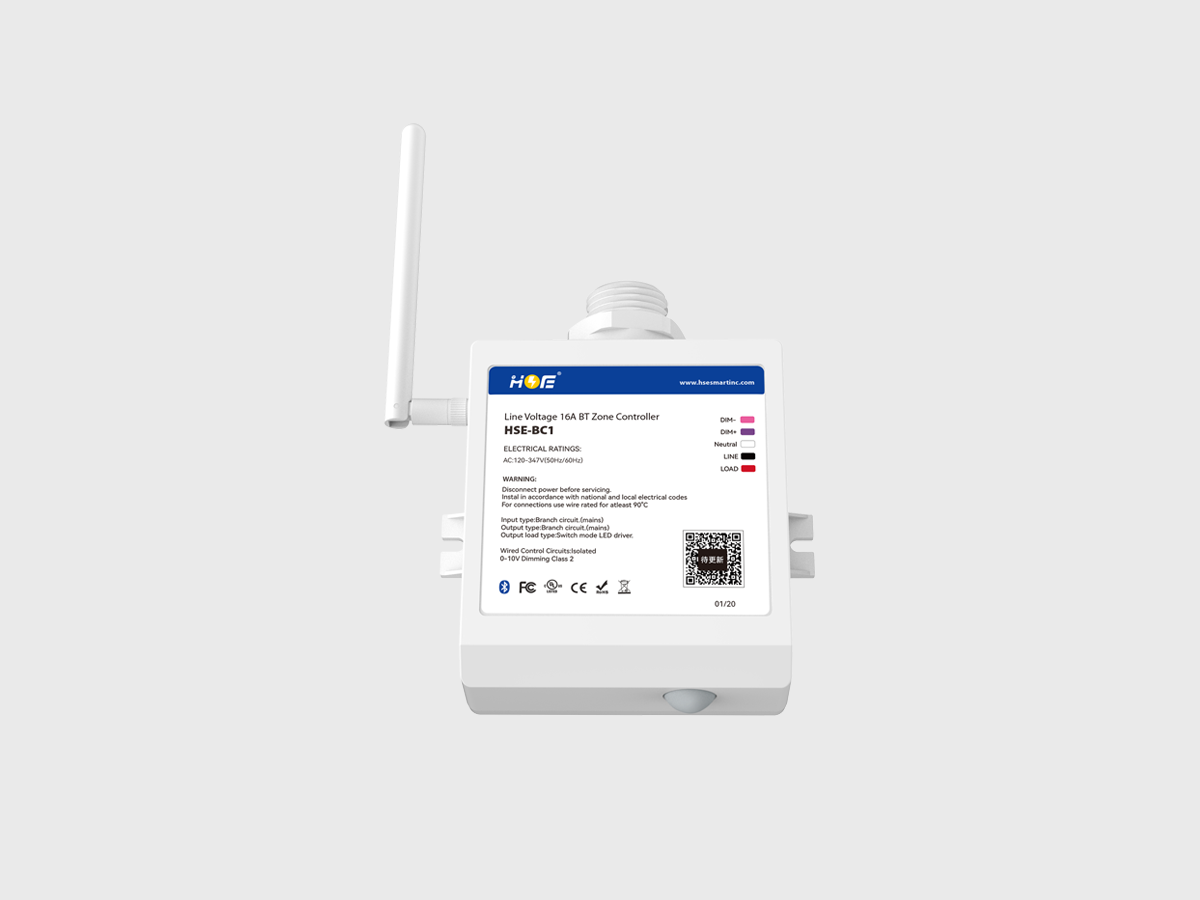

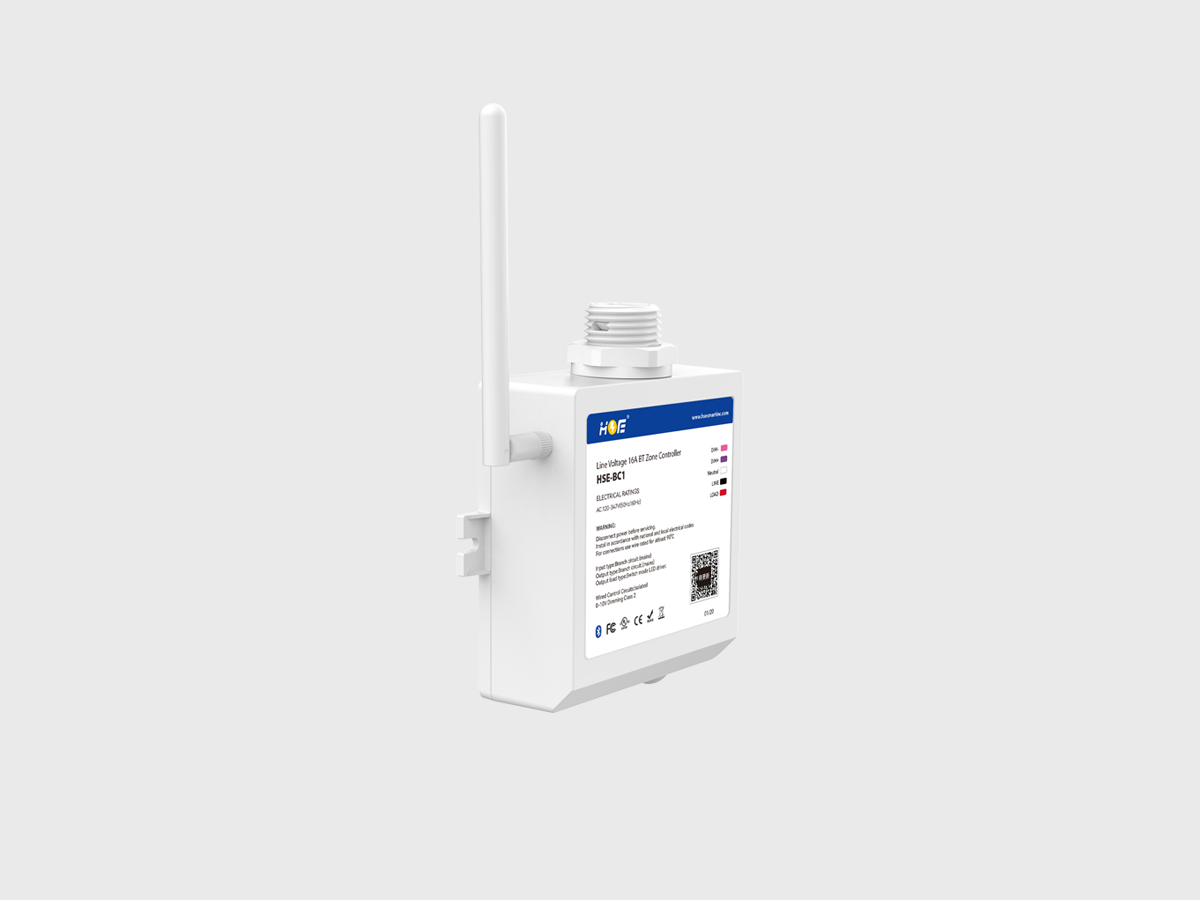

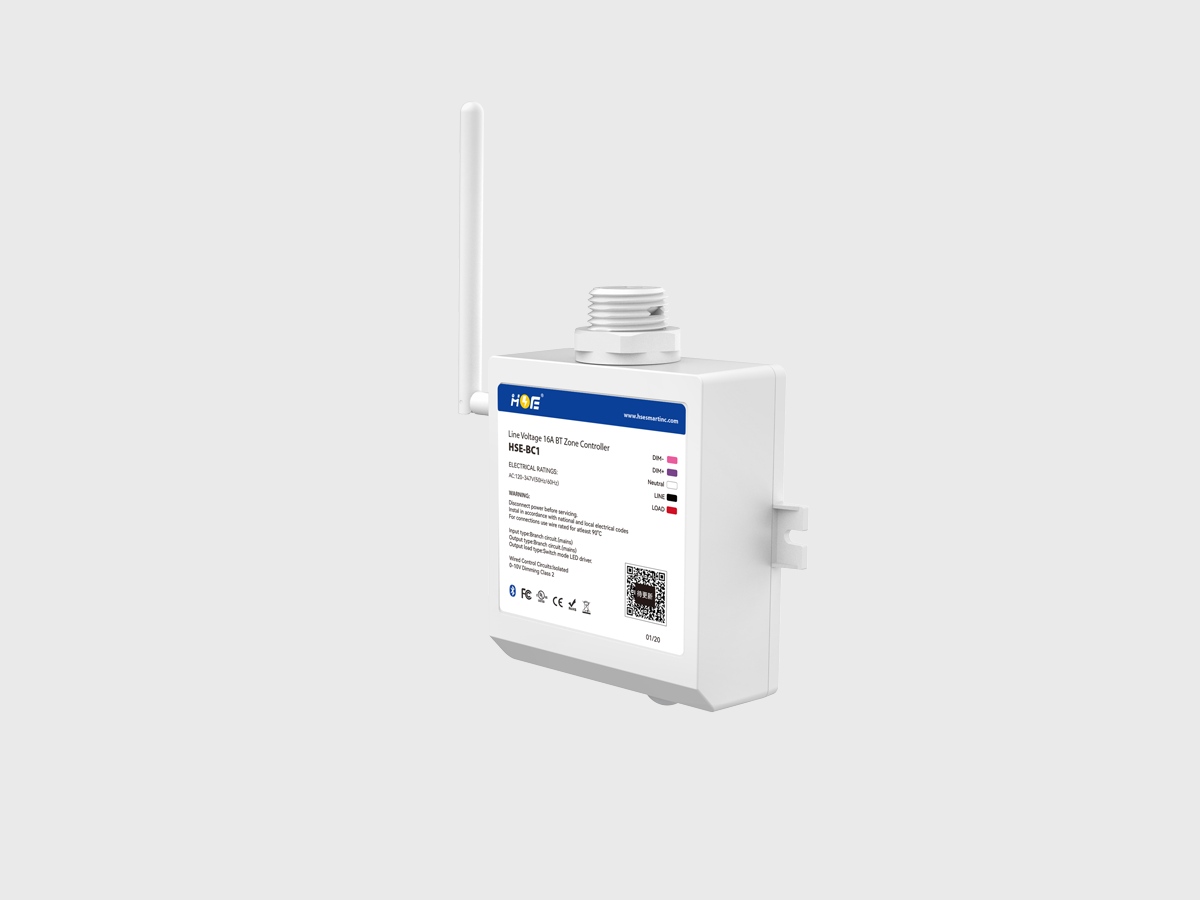

HSE-BC1
DESCRIPTION
The HSE-BC1 Series Bluetooth zone controllers feature a
16A relay for controlling higher capacity loads than
standard ffxture controllers.
FEATURES
• 120-347VAC Input
• Integrated 16A relay
• Output power 1920W Max @ 120V, 5552W Max @ 347V
• UL Plenum Rated
• 1 HP motor load rated
The HSE-BC1 Series Bluetooth zone controllers feature a
16A relay for controlling higher capacity loads than
standard ffxture controllers.
FEATURES
• 120-347VAC Input
• Integrated 16A relay
• Output power 1920W Max @ 120V, 5552W Max @ 347V
• UL Plenum Rated
• 1 HP motor load rated
|
Part Number |
HSE-BC1 |
|
Component Type |
Zone Controller |
|
Input Voltage |
AC120 - 347V |
|
Frequency |
50 / 60Hz |
|
Output Voltage |
AC120 - 347V |
|
Output Current |
16A Max |
|
Output Power |
1920W Max@120V, 5552W Max@347V |
|
Dimming |
0 - 10V |
|
Standby power |
＜1.5W |
|
Bluetooth Transmit |
25M / 170.60ft |
|
Radio Frequency |
2.4GHz (2402 ~ 2480MHz) |
|
Bluetooth Version |
5.2 |
|
Indoor / Outdoor Use |
Indoor / Outdoor |
|
WorkingTemperature |
-20°C to 85°C, -68°F to 122°F |
|
IP Rating |
IP65 |
|
Energy Monitoring |
Power / Current / Voltagc |
|
Protection |
Overload protection |
|
Warranty |
5 years warranty |
|
Compliance |
UL8750, UL1376, RoHS |
