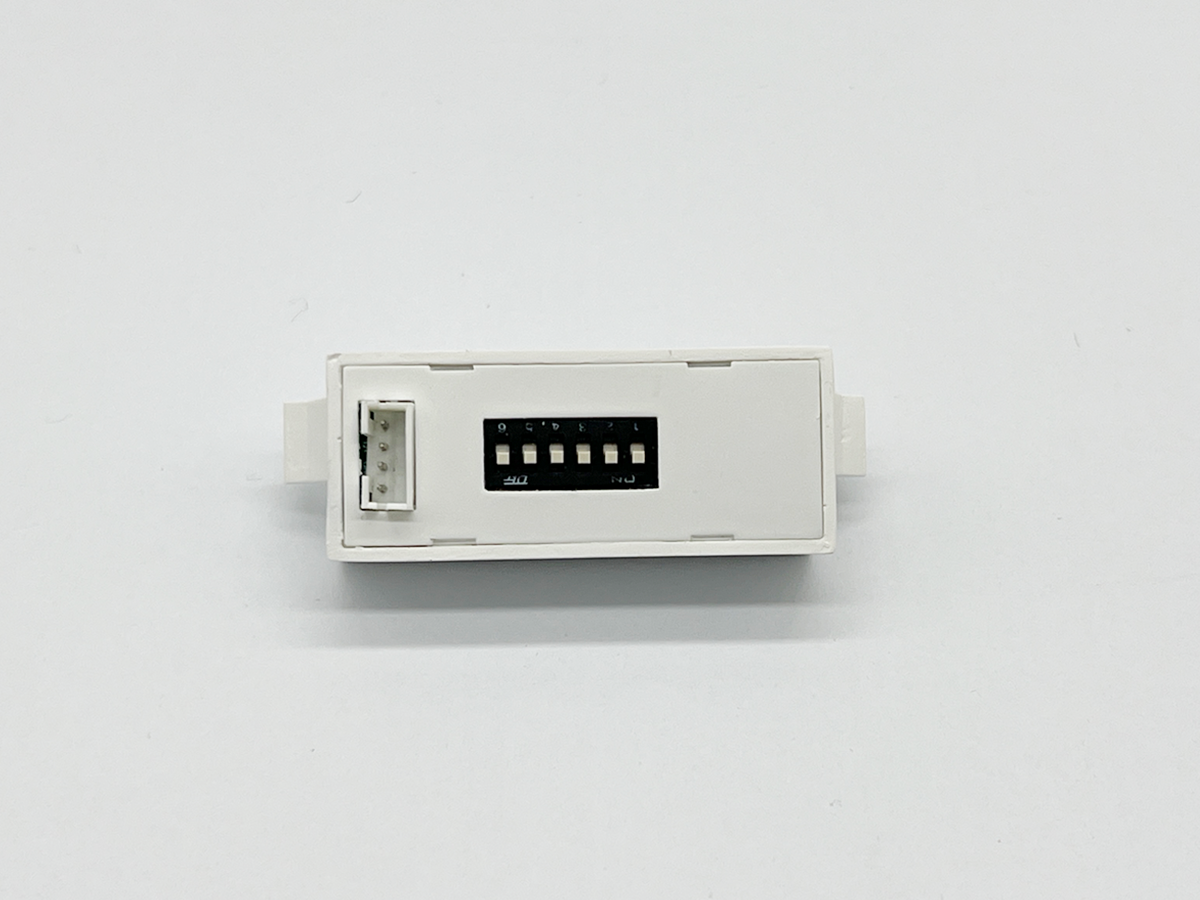

HSE-SCM20L-5

FEATURES
• Automatic ON/OFF control with Daylight sensor.
• Optional detection range, hold time and daylight threshold .
• The CCT setting can be adjusted via the CCT button on the remote control.
• Application：Panel, Troffer, Strip, Wrap.
• 5 year limited warranty.

Technical Specifications

Component Type	High - bay PIR Sensor
Input Voltage	DC 10-15V
Input Current	<30mA
Load Control Capacity	Sink Current < 40 mA
Control Method	0-10V Dim / CCT
Frequency	5.8 GHz ±75 MHz
Microwave Powe	<0.3mW
Control Device	Remote Control & Manual Switches

CCT adjustable	2700-6500K
Detection Angle	Ceiling Mounted 360 ° Wall Mounted 150 °
Mounting Height	Standard 3m (9 ft) Max. 4.5m(14.7 ft)
Detection Range	Radius: 4m (13 ft)
Working Temp	-35℃ to +70℃
IP Rating	IP20
Warranty	5 years
