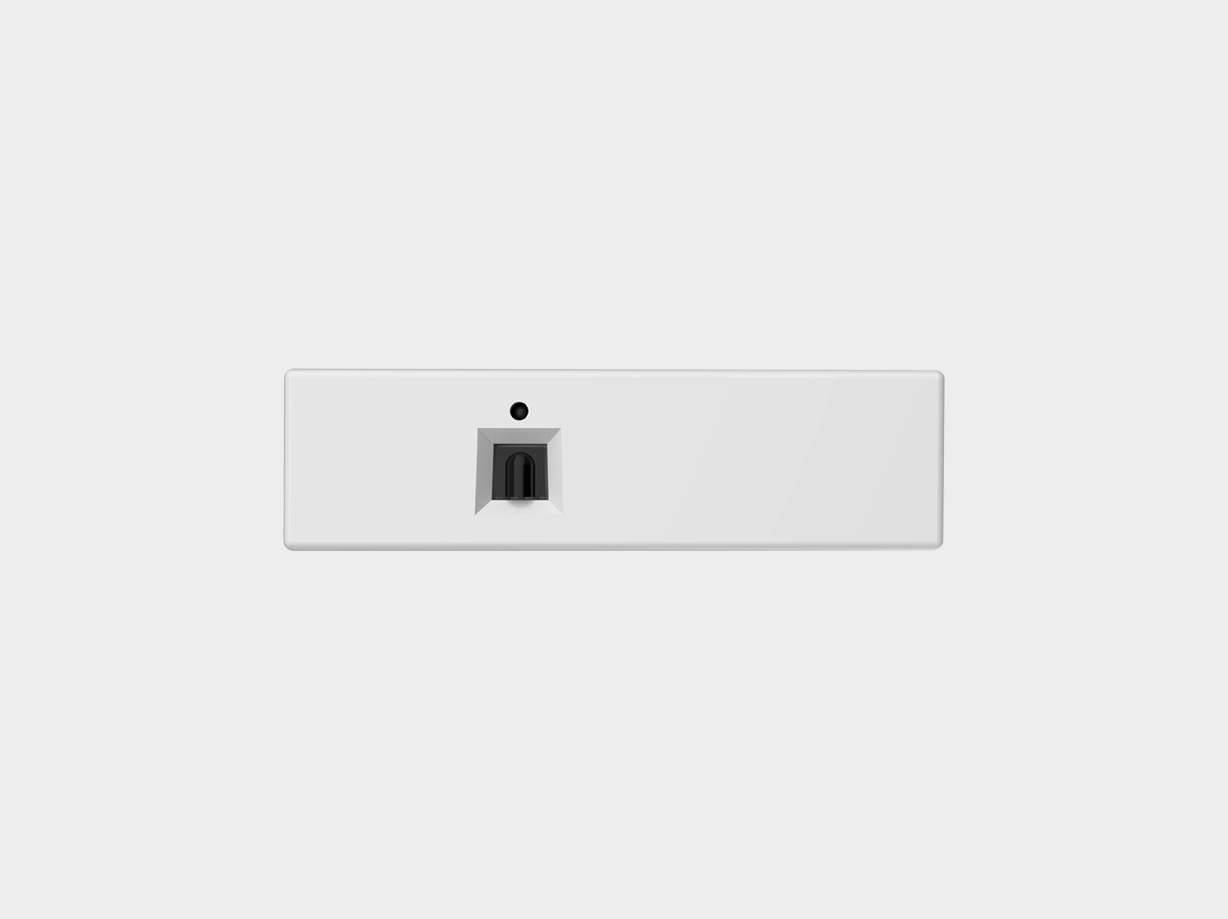

HSE-BSM17L-2

FEATURES
• NLC/DLC Qualified Product
• Tiny Microwave Sensor with/out Bluetooth-Mesh, PIR Version Interchangeable.
• Audio-Jack Classic Connection, 0-10V Dimming, with Daylight Harvesting
• Suitable for Indoor Lighting, Panel, Troffer etc.

Technical Specifications

Component Type	Integrated Slim Microwave Sensor
Input Voltage	DC 10.5-15V
Input Current	<40mA
Stand-by Power	DC10V@<0.5W
Control Method	DIM 0-10V
Frequency	5.8GHz±75MHz
Microwave Power	<0.3mW
Control Device	HSE WISE APP
Bluetooth Transmit	30m / 98ft

Radio Frequency	2.4GHz (2402~2480MHz)
Bluetooth Version	5.4
Detection Angle	30-150° ( Without Glass Cover)
Mounting Height	<4m/13ft
Detection Range	Radius: 3-7m ( 9.84–22.97ft)
Working Temp	-25℃ to +60℃
IP Rating	IP20
Warranty	5 years

Spec Sheet

HSE-BSM17L-2.pdf

Online browsing Download
