PRODUCTS > HSE-BSP17L-2A Series

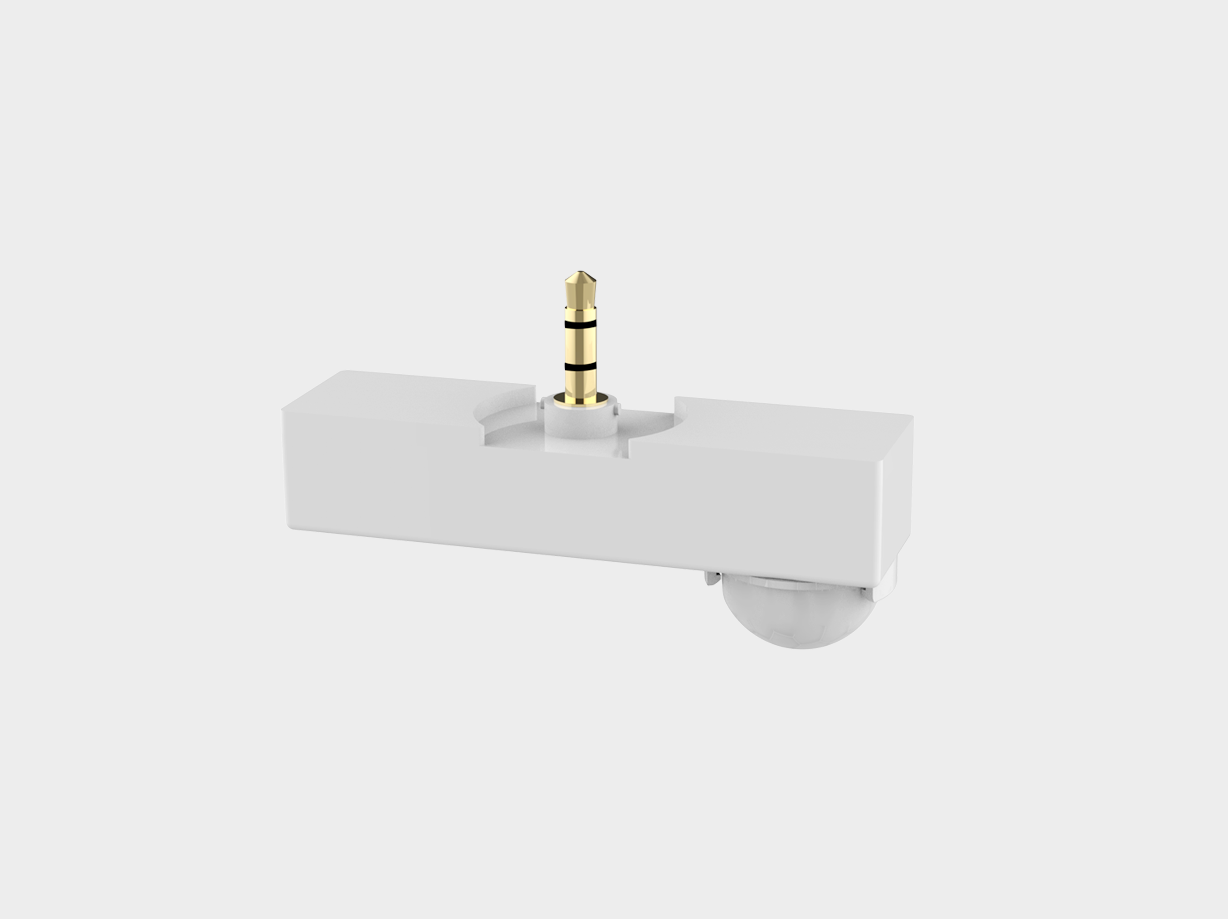

HSE-BSP17L-2A Series

FEATURES
• NLC/DLC Qualified Product
• BLE Version with APP control
• Tiny PIR Sensor with Microwave Version Interchangeable.
• Audio-Jack Classic Connection, 0-10V Dimming, with Daylight Harvesting
• Suitable for Indoor Lighting, Panel, Troffer etc.

Technical Specifications

Component Type	Integrated Slim PIR Sensor
Input Voltage	DC 10-15V
Input Current	<15mA
Stand-by Power	DC10V@<0.5W
Control Method	DIM 0-10V
Control Device	HSE WISE APP
Bluetooth Transmit	30m / 98ft
Radio Frequency	2.4GHz (2402~2480MHz)

Bluetooth Version	5.4
Detection Angle	120-360 ° Fresnel Lens
Mounting Height	<4m/13ft
Detection Range	Radius: 2-4m (6.56-13.12ft)
Working Temp	-25℃ to +60℃
IP Rating	IP20
Warranty	5 years

Spec Sheet

HSE-BSP17L-2A.pdf

Online browsing Download
