HSE-BSM3L-5

DESCRIPTION

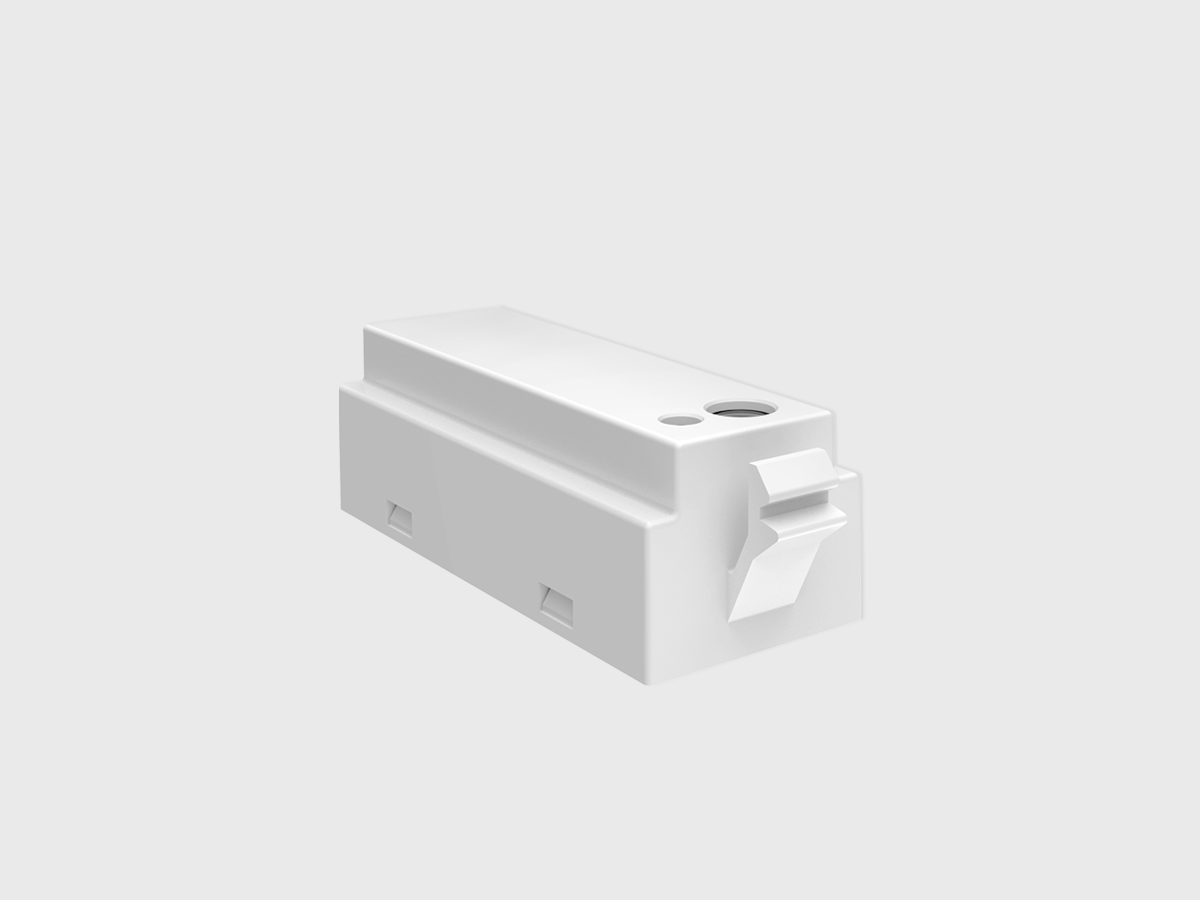

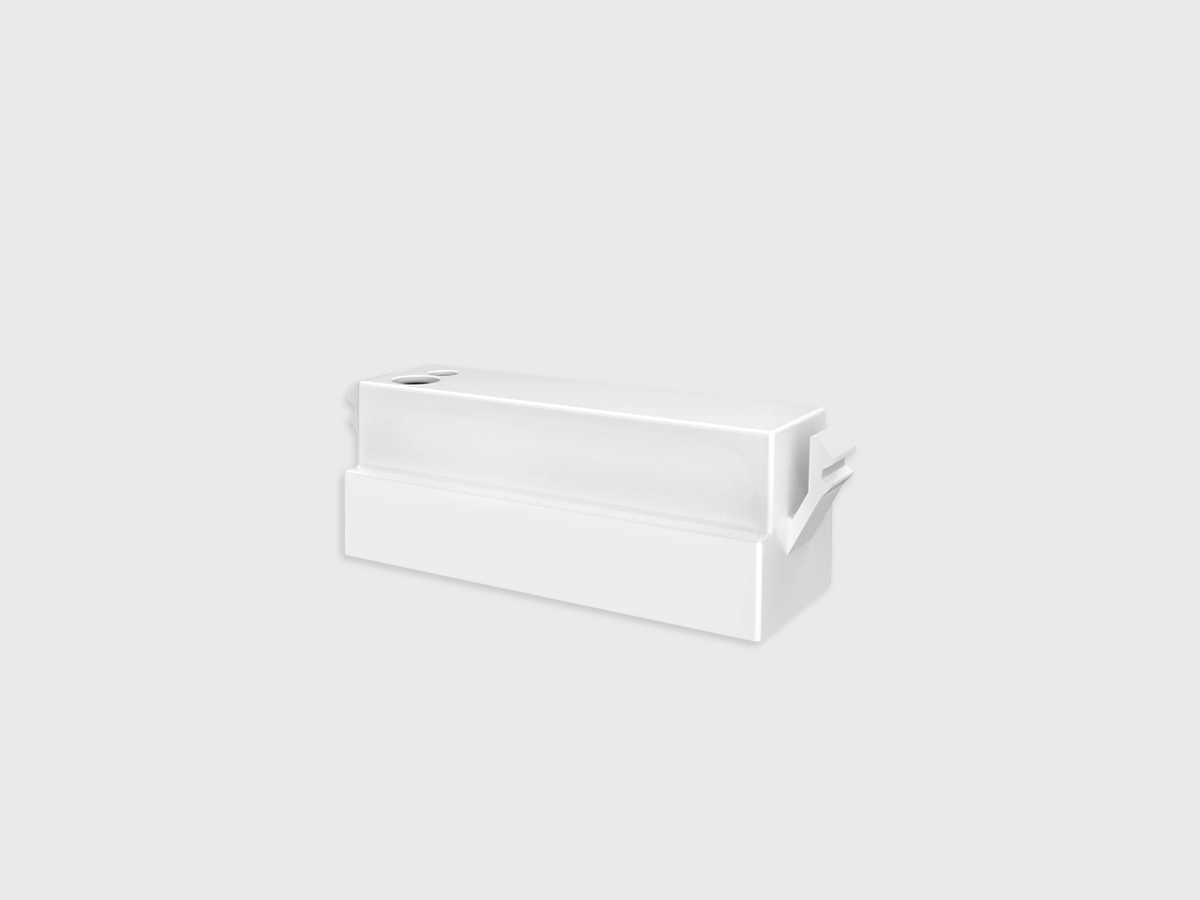

HSE-BSM3L-5 is compact size Microwave sensor combines
occupancy sensing with photocell. When used with 0-10V
dim-to-off LED drivers, it enables any lighting manufacturer
to deliver sensor-equipped fxtures with minimal engineering
effort.

• Bluetooth and regular version available.

Technical Specifications

Component Type	Integrated Square Microwave Sensor
Input Voltage	DC 10-15V
Input Current	<30mA (Regular-Version) <50mA (Bluetooth-Version)
Input Power	0.3W
Dimming	0-10V DIM
Sinking Current	Remote Control & Manual Switches & HSE WISE APP
Dimming	Class 2, 0-10V DC 10mA Max
Sinking Current	10mA Max
Bluetooth Transmit	25M / 170.60ft
Radio Frequency	2.4GHz（2402~2480MHz）
Bluetooth Version	5.4

Detection Range	Radius: 2-4m 6.56-13.12ft
Mounting Height	≤3m (9.84ft)
Detection Angle	Ceiling Mounted 360 ° Wall Mounted ≤120 °
Working Temp	-35°C to 70°C
IP Rating	IP20
Warranty	5 years warranty

Spec Sheet

HSE-SM3L-5 HSE-BSM3L-5.pdf
