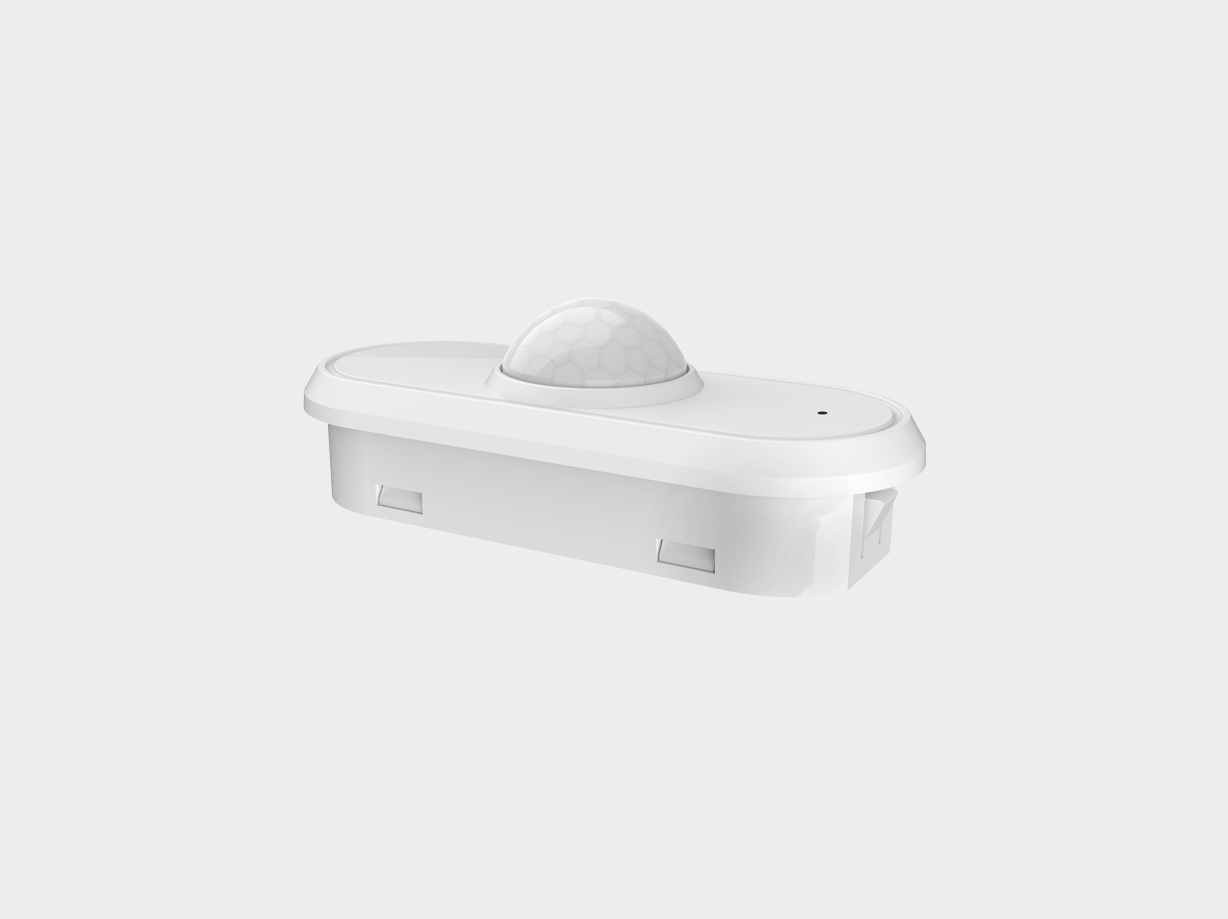

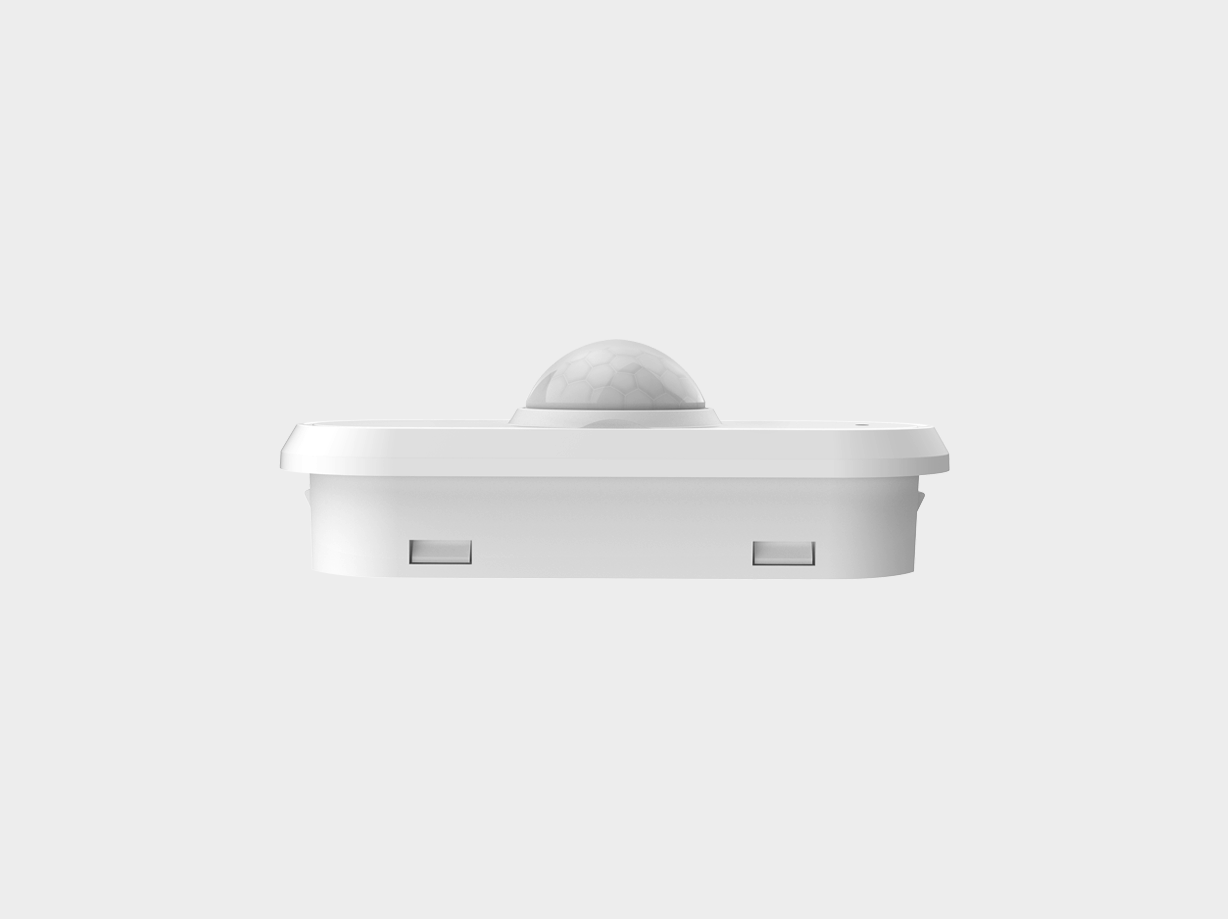

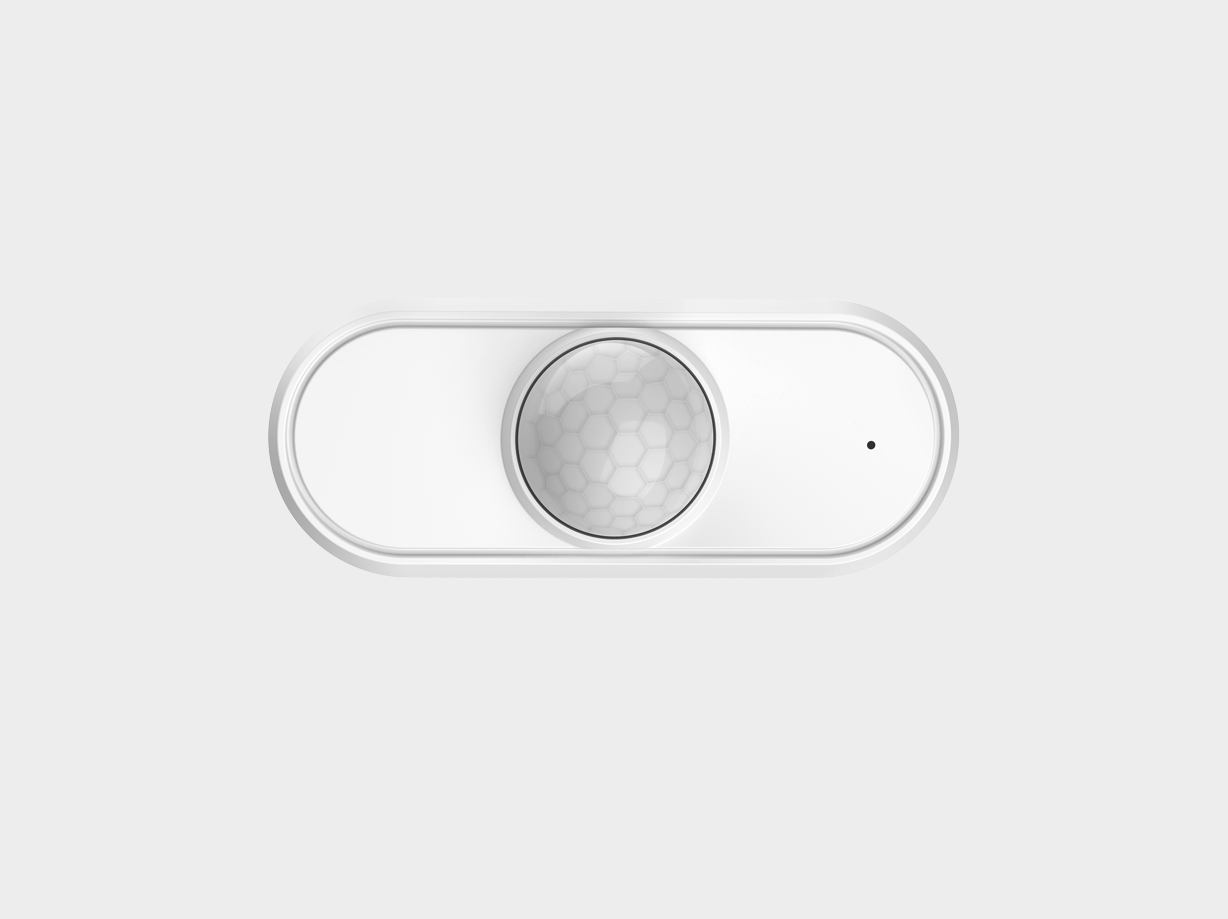

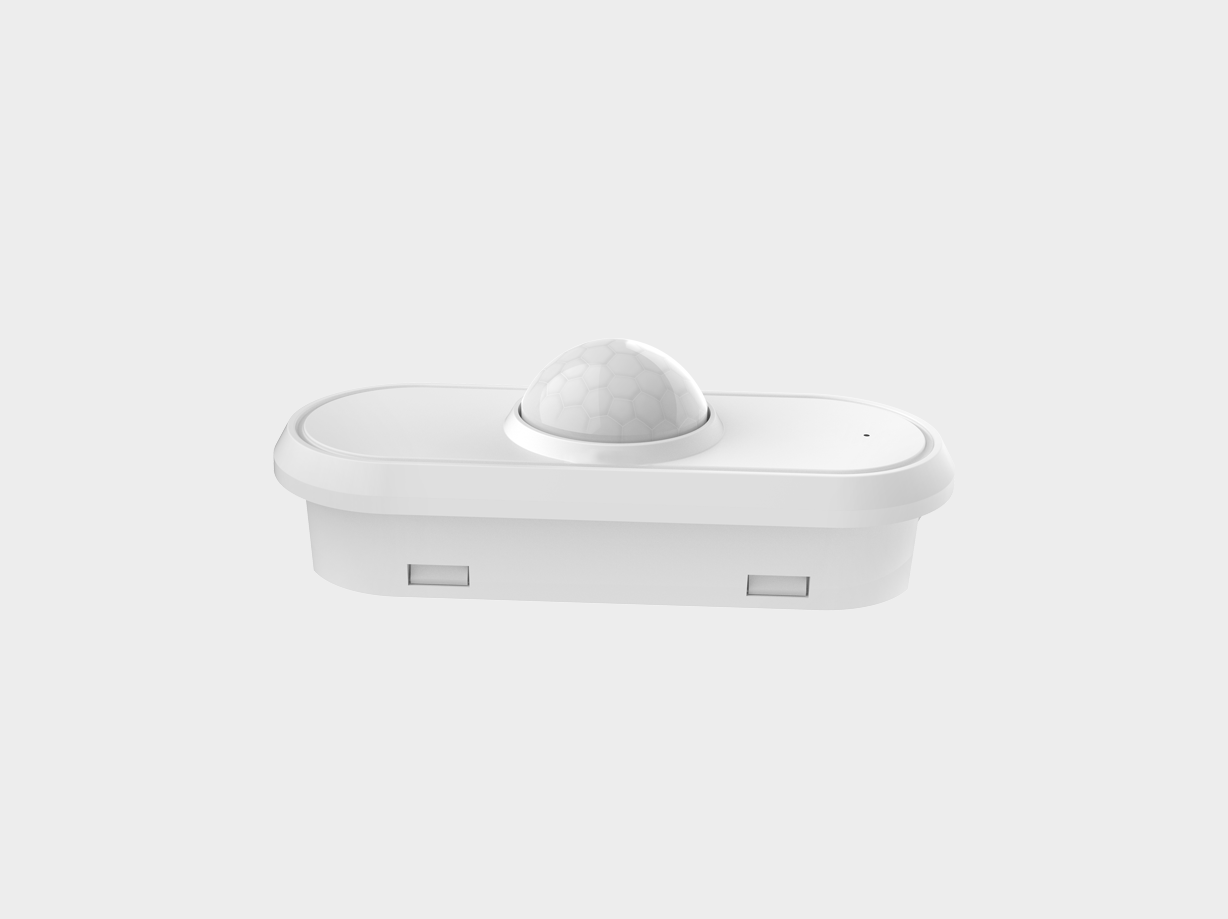

HSE-XSCP2L-5 Series

FEATURES
• Bluetooth and regular version available;
• 0-10V dimming available
• Daylight Harvesting + PIR analog sensing technology
• Low-profle linear design with minimal height above luminaire
• 4-pin design enables color-tuning
• Applications: Panel, Troffer, Strip, Wrap

Technical Specifications

Component Type	Integrated Oval PIR Sensor
Input Voltage	DC 10-15V
Input Current	<15mA
Stand-by Power	DC 10V@<0.5W
Control Method	DIM 0-10V
Control Device	Remote Control #HD06R & Manual Switches & HSE WISE APP
Bluetooth Transmit	30m / 98 ft
Radio Frequency	2.4GHz（2402~2480MHz）
Bluetooth Version	5.4

Warm-up Period	10S
Detection Angle	Fresnel Lens（ Ceiling Mounted 360 ° Wall Mounted ≤120 °)
Mounting Height	<4M/13ft
Detection Range	Radius: 2-4m 6.56-13.12ft
Storage Temperature	-30°C to 85°C, -22°F to 185°F
IP Rating	IP20

Spec Sheet

HSE-SCP2L-5 HSE-BSCP2L-5 Series(1).pdf

Online browsing Download
