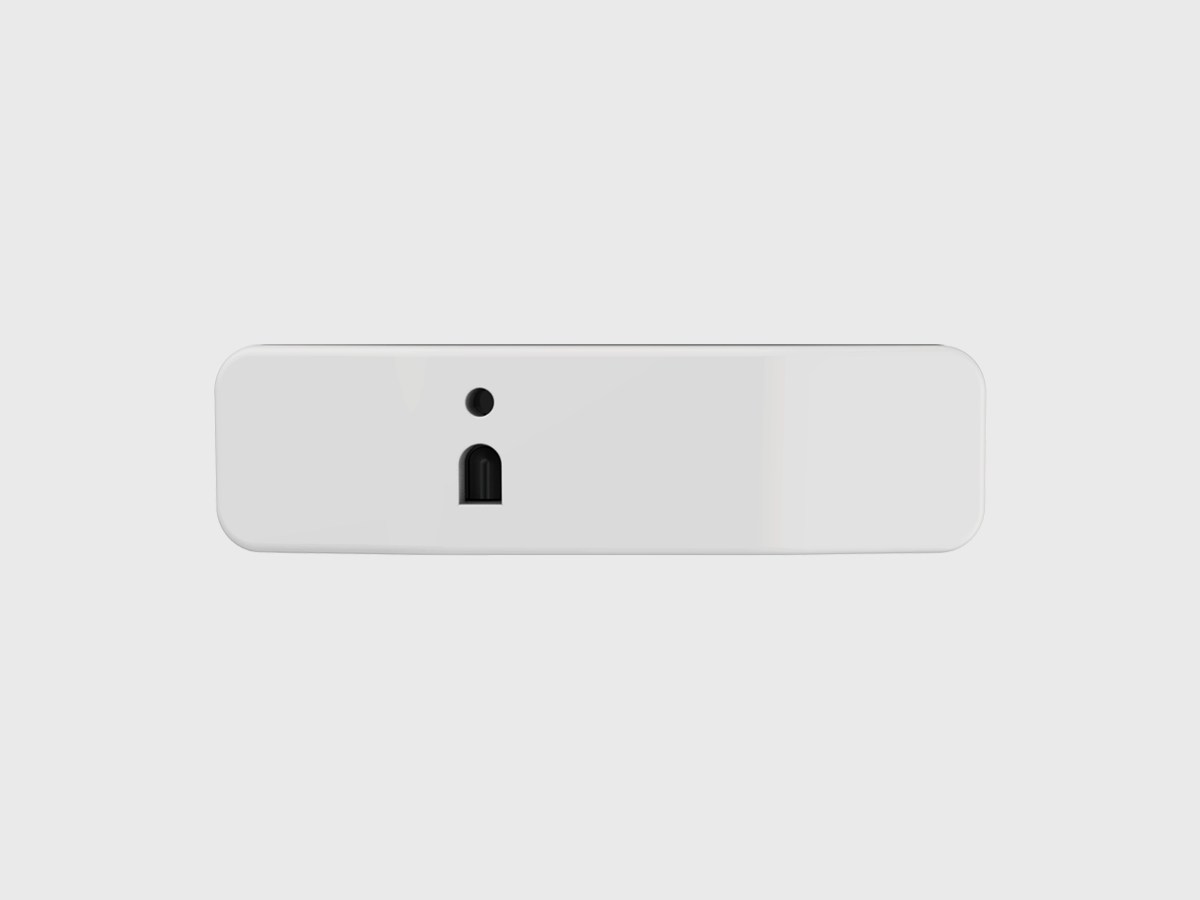

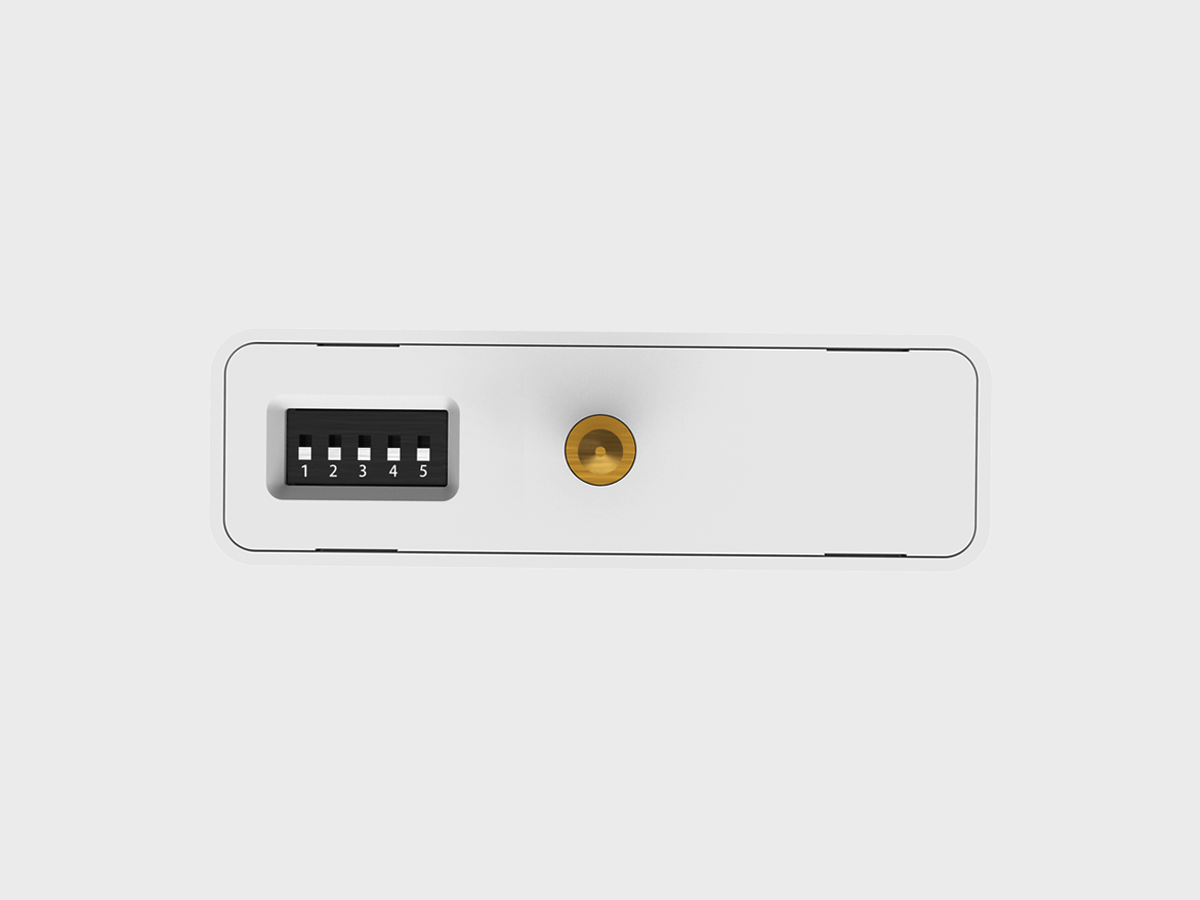

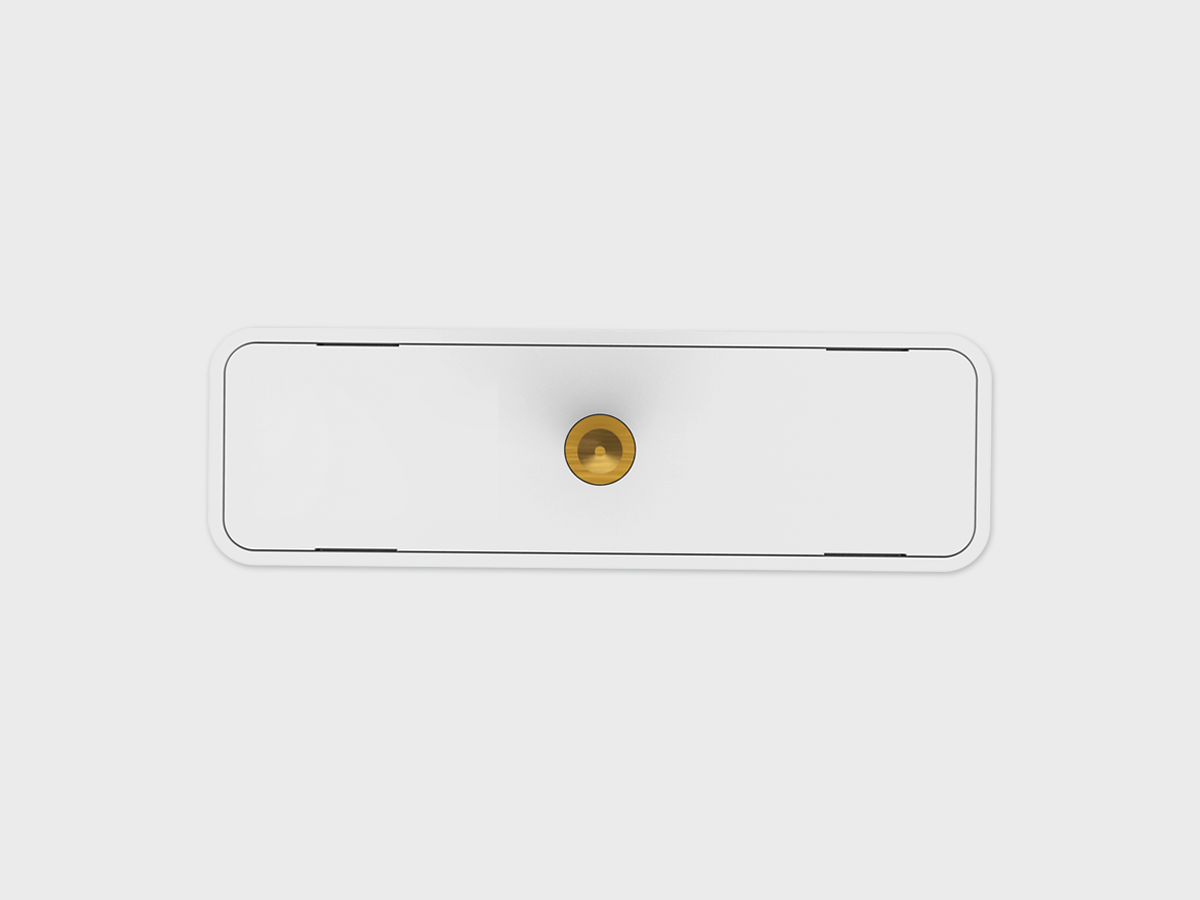

HSE-XSM5L-2 Series

FEATURES
• 12VDC，0-10V Dimming.
• With Daylight Harvesting and Photocell Function.
• BLE Version with APP control & Regular Version with remote control both available.
• Application：Panel, Troffer, Strip, Wrap, etc.

Technical Specifications

Component Type

Integrated microwave Sensor

Input Voltage

DC 10-15V

Input Current

30mA

Stand-by Power

DC10V@<0.5W

Control Method

DIM 0-10V

Control Device

   Remote Control & Manual Switches                                   & HSE WISE APP

Bluetooth Transmit

30m / 98ft

Radio Frequency

2.4GHz (2402~2480MHz)

Bluetooth Version

5.4

Detection Angle

30-150°（Without Glass Cover)

Mounting Height

<4m/13ft

Detection Range

Radius: 3-7m 9.84-22.97ft

Working Temp

-25℃ to +60℃

IP Rating

                                                              IP20

Warranty

5 years
