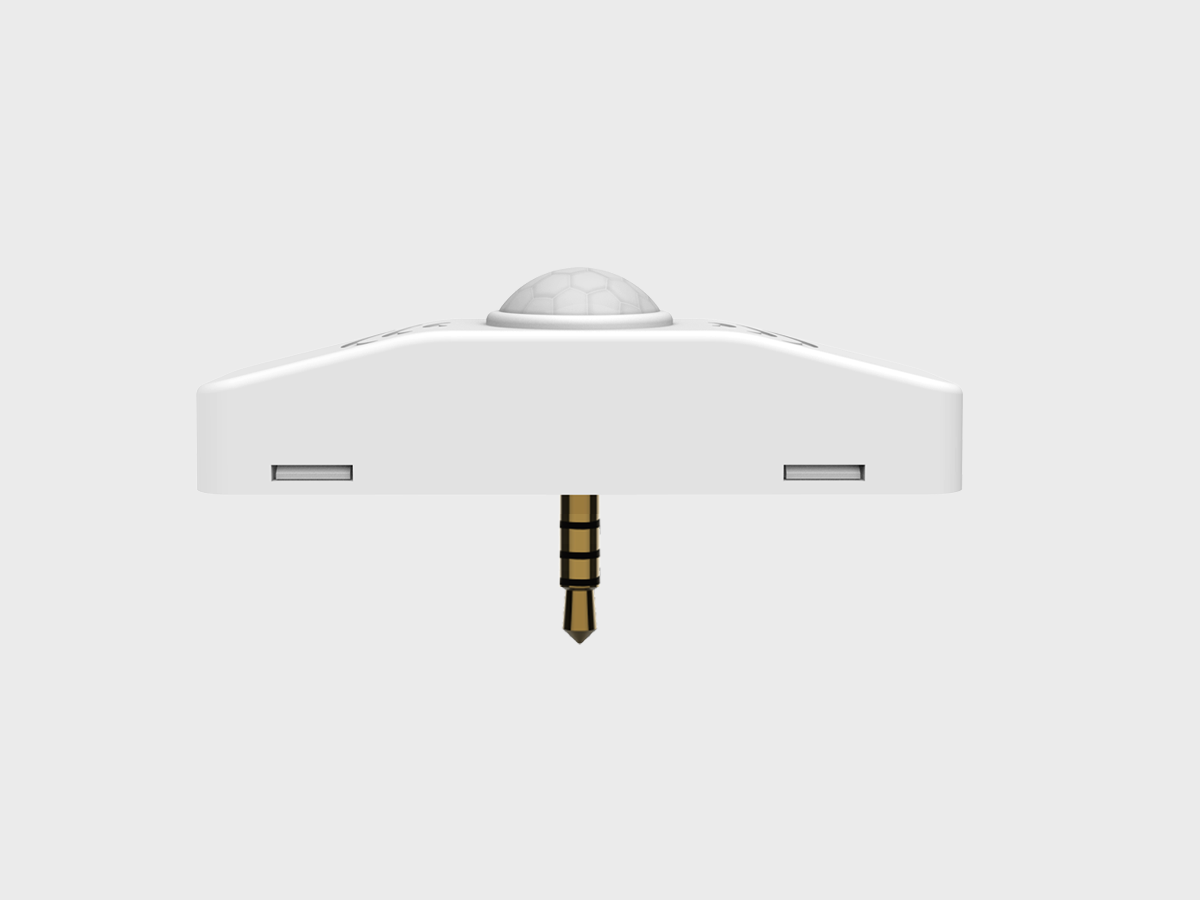

  • HSE-XSCP5L-2(1).png

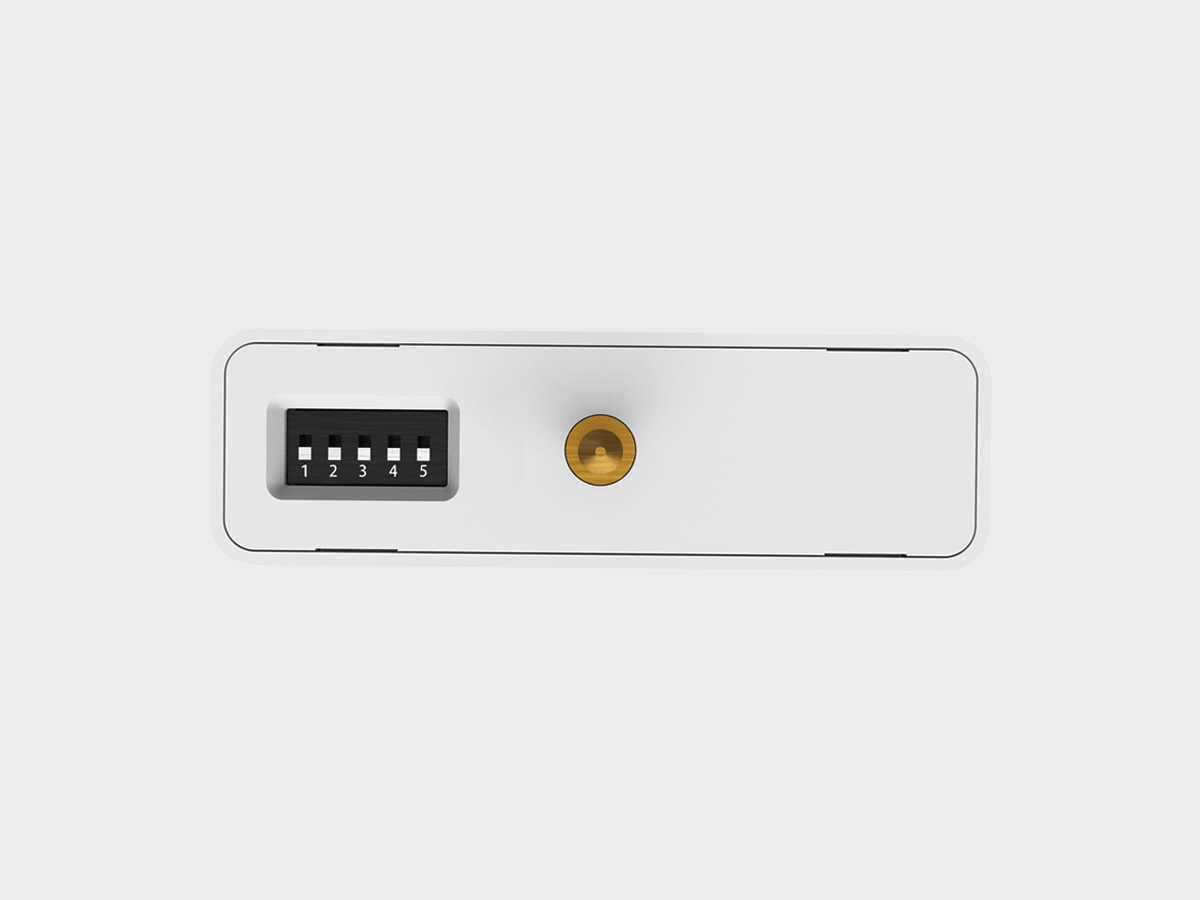

  • HSE-XSCP5L (1).png

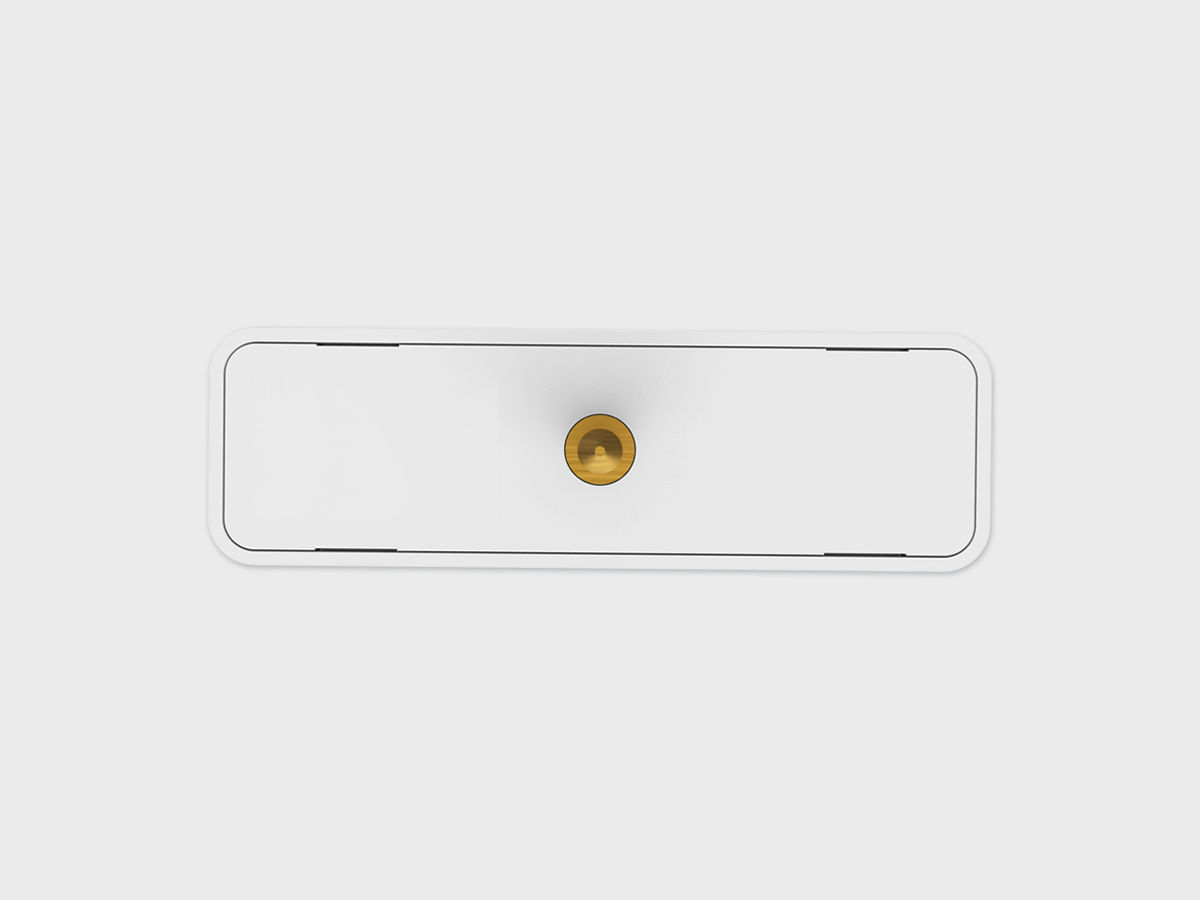

  • HSE-BSM5L-2(1).png
    • 1
    • 2
    • 3
    • 4

HSE-XSCP5L-2 Series

FEATURES
• 12 VDC, 0–10V dimming
• 4-pin audio plug interface for 0–100% stepless dimming and 2700–6500K CCT adjustment.
• BLE Version with APP control & Regular Version with remote control both available.
• Application：Panel, Troffer, Strip, Wrap, etc.

Technical Specifications

Component Type

Integrated CCT Adjustment Sensor

Input Voltage

DC 10-15V

Input Current

15mA

Stand-by Power

DC10V@<0.5W

Control Method

DIM 0-10V

Control Device

   Remote Control & Manual Switches                                   & HSE WISE APP

Bluetooth Transmit

30m / 98ft

Radio Frequency

2.4GHz (2402~2480MHz)

Bluetooth Version

5.4

CCT Adjustment

2700-6500K

Detection Angle

120-360 ° (Fresnel Lens)

Mounting Height

<4m/13ft

Detection Range

Radius: 2-4m (6.56-13.12ft)

Working Temp

-30℃ to +60℃

IP Rating

                                                              IP20

Warranty

5 years
