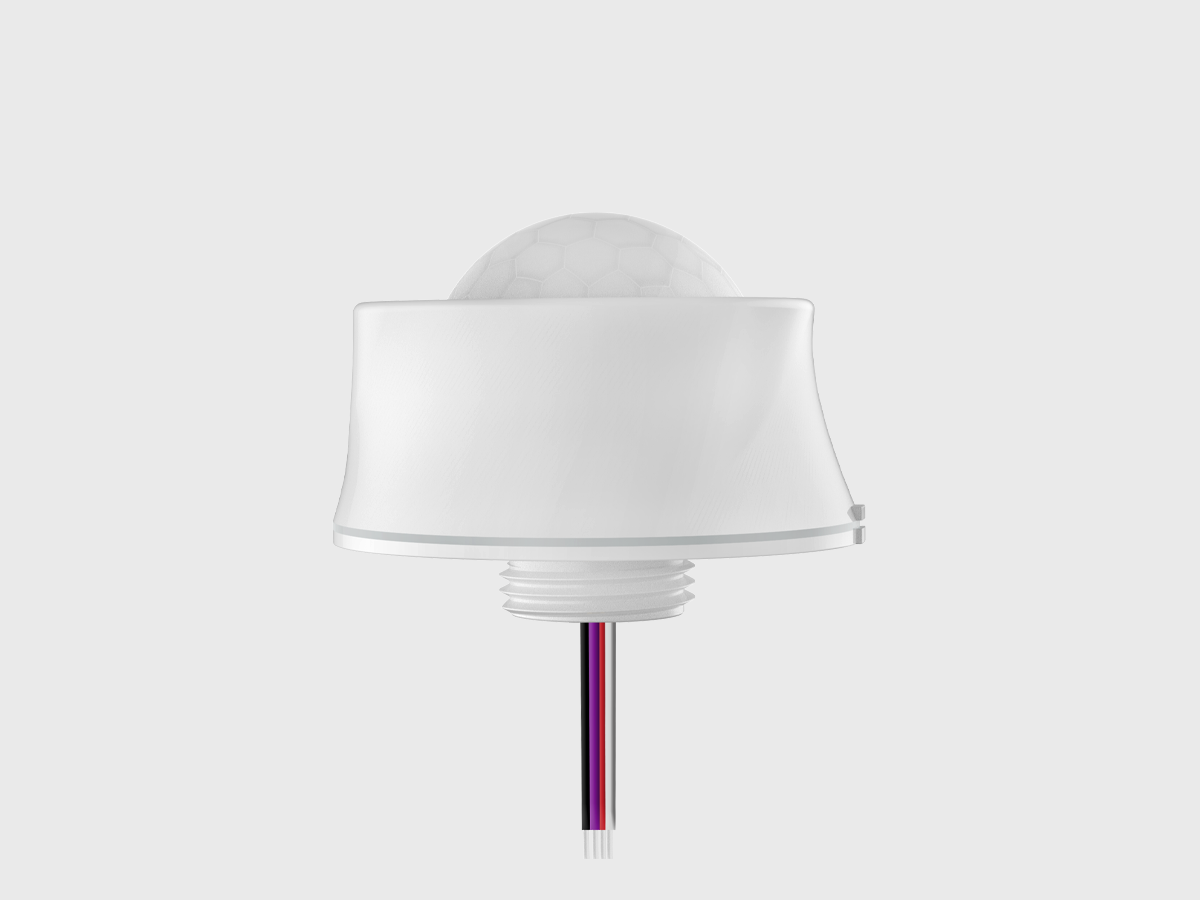

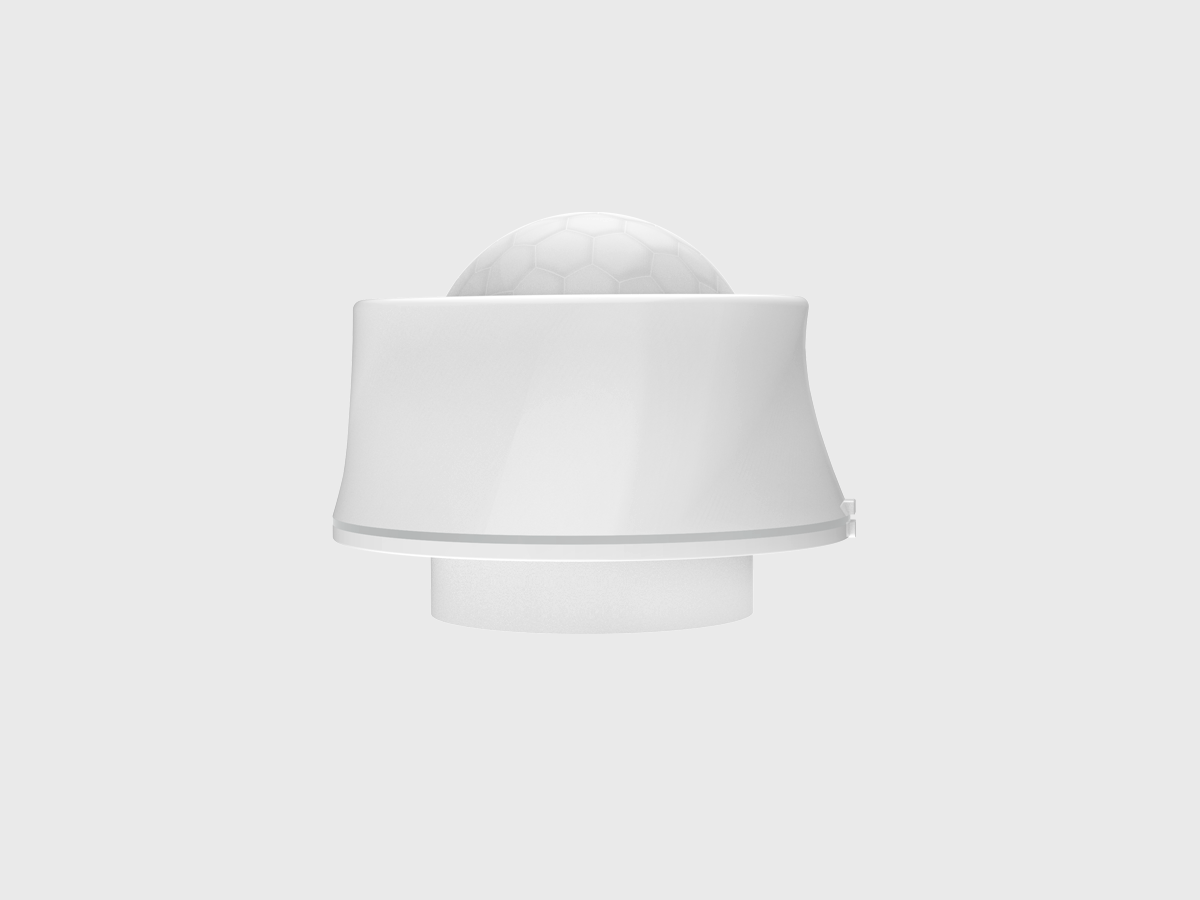

HSE-XSCP19H Series

FEATURES
• 4-pin audio plug interface .
• Zhaga interface .
• 4-wire interface: Red: VCC / Black: GND / Yellow: DIM+ / White: CCT.
• Supports stepless dimming from 0–100% and color temperature adjustment ranging 2700K–6500K.
• UFO high bay, Linear high bay, area light

Technical Specifications

Component Type	High - bay PIR Sensor
Input Voltage	DC 12-24V
Input Current	<30mA (Regular-Version) <20mA (Bluetooth-Version)
Stand-by Power	DC 10V@<0.5W
Control Method	DIM 0-10V
Control Device	Remote Control #HD06R & HSE WISE APP
Bluetooth Transmit	30m / 98 ft
Radio Frequency	2.4GHz（2402~2480MHz）
Bluetooth Version	5.4

Detection Angle	120-360° Fersnel Lens
Mounting Heigh	12m (39ft) Max.
Detection Range	Radius: 3-7m (9.84 - 22.97ft)
Working Temp	-20°C to 60°C
IP Rating	IP65
Warranty	5 years

Spec Sheet

HSE-SCP19H HSE-BSCP19H Series.pdf

Online browsing Download
