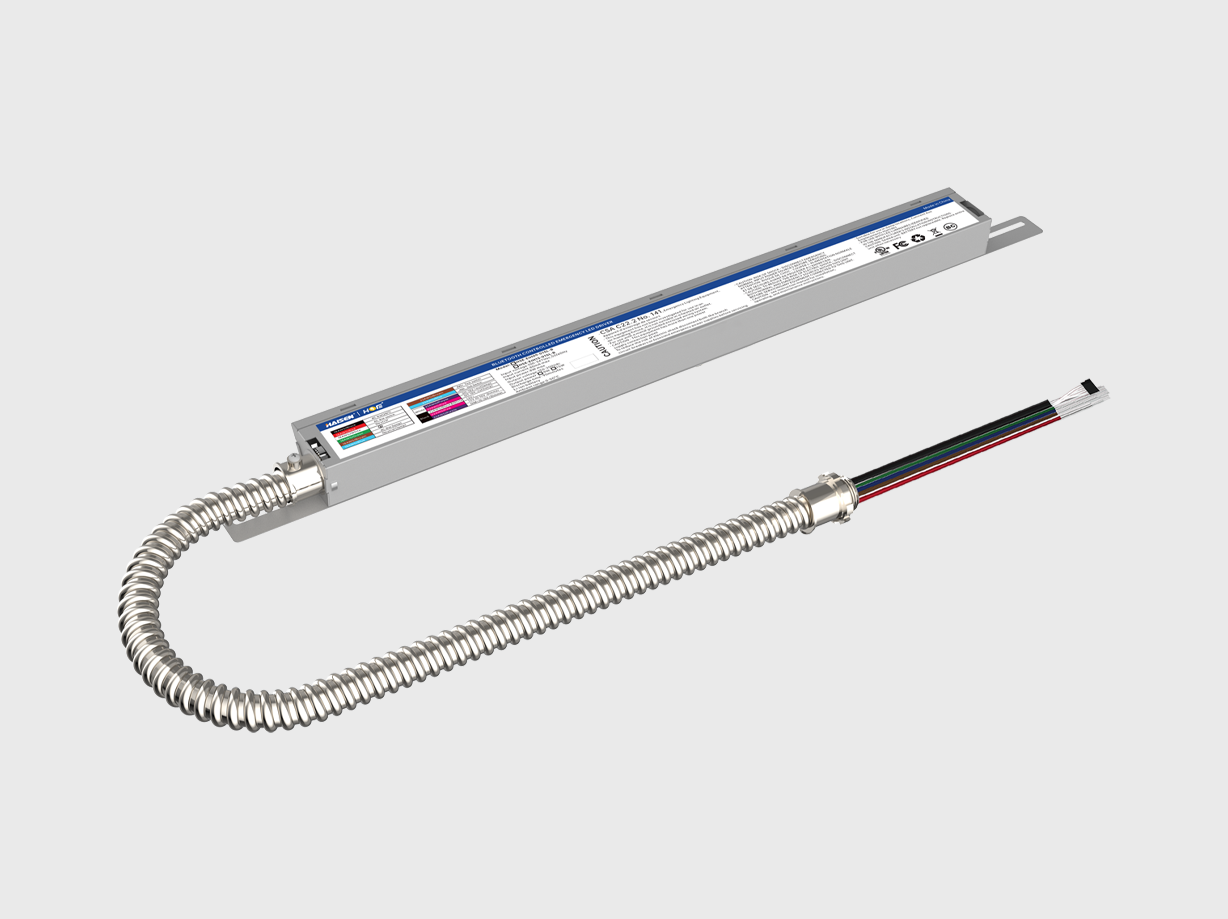

  • EIH-40.png

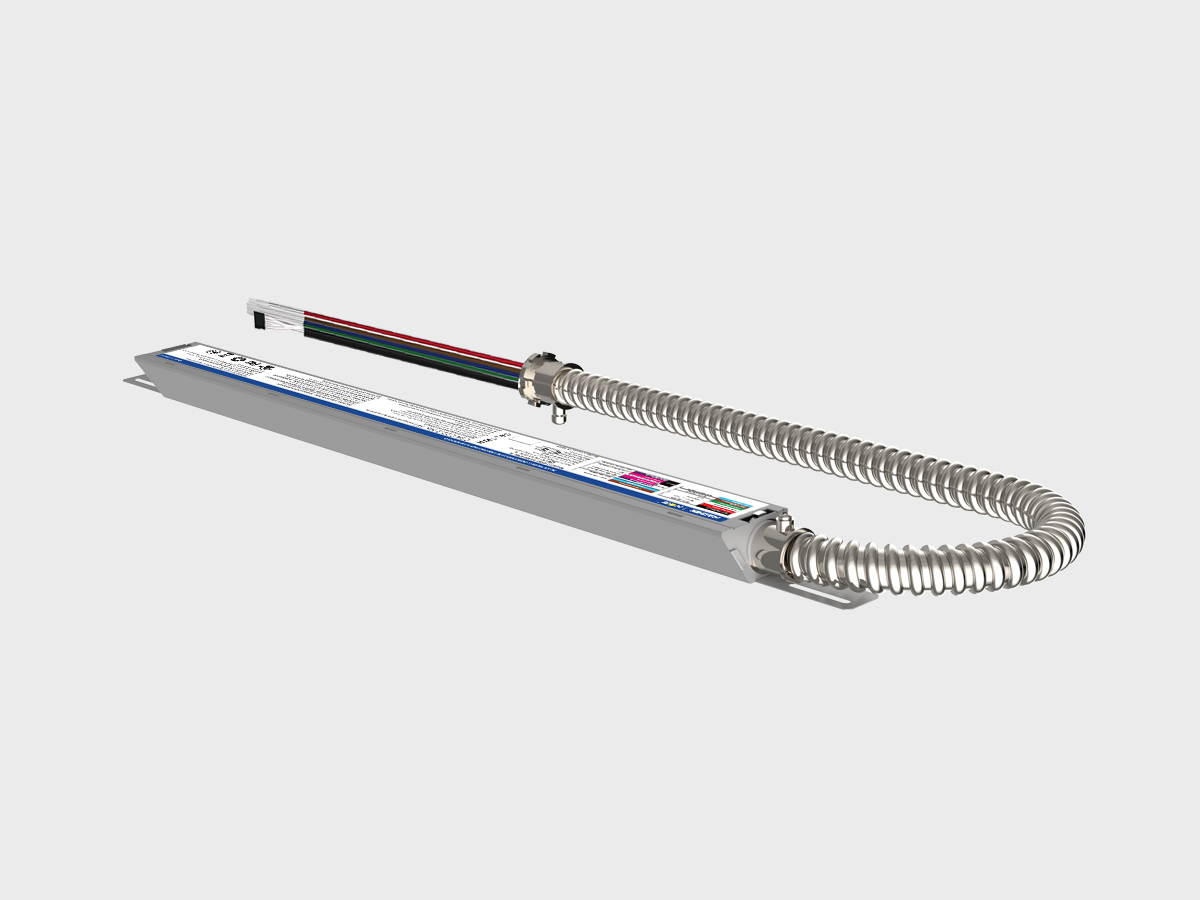

  • HSE-EIH-01S.png
    • 1
    • 2

HSE-EIH-01S Series

• Input voltage: 100-347VAC,50/60Hz
• Output power: 150-200V DC
• Emergency power: 9W 15W
• Battery type: Ternary lithium battery
• Application：Panel, Troffer

Technical Specifications

Component Type

Emergency driver for Supply Line hook-up

Input Voltage

100-347VAC,50/60Hz

Input Current

0.08A max

Input Power

8W Max

Power factor

0.6 @100VAC, 0.5@347VAC

Input of LED load

                                                      AC 6A Max

Radio Frequency

150-200V DC

Battery

Li-ion

Emergency wattage

9W / 15W

Recharge duration

＜24Hrs

Emergency duration

90mins

Ambient temp

0-50℃(32℉-122℉)

IP Rating

                                                              IP20

Warranty

5 years
