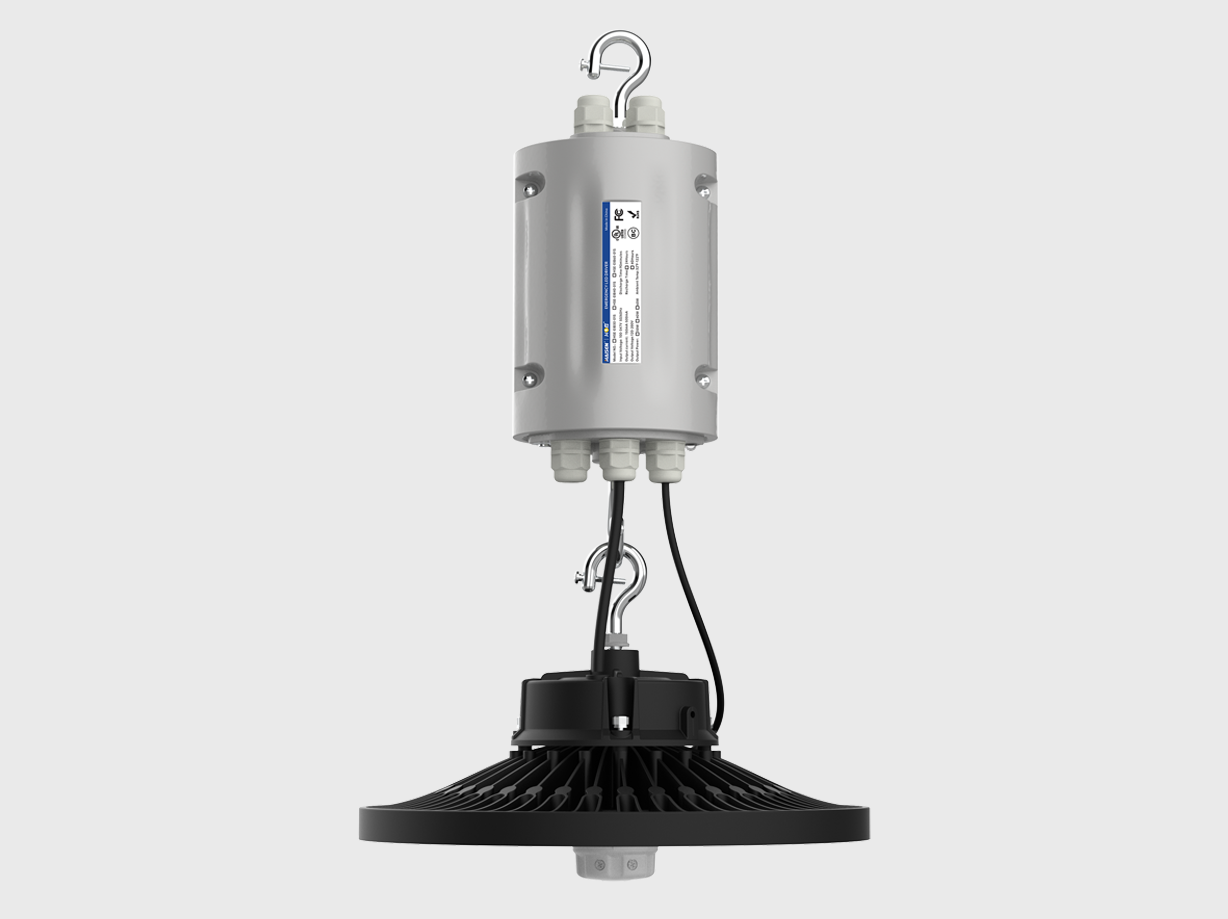

HSE-EIB-01S SERIES

FEATURES
• UL listed for feld or factor installation,CEC title 20 compliant
• Compliance with American NFPA 101 life Safety Code.
• With built-in junction box.
• 2 -in- 1 LED test switch and indicator light included
• Remote control , APP control for BLE versio
• Manual testing via remote control (optional)
• Monthly/annual self-testing
• Easy installation,no need to open up a luminaire to connect this device to the driver,connect with the led lamp directly.

Technical Specifications

Component Type

Emergency driver for Supply Line hook-up

Input Voltage

100-347V AC,50/60Hz

Input Current

0.15A max

Input Power

12W Max

Power factor

0.6 @100VAC, 0.5@347VAC

Input of LED load

                                   120-200Vdc 250V MAx

Battery

 Li-ion

Emergency wattage

 30W / 40W / 60W

Recharge duration

＜24Hrs

Emergency duration

90mins

Ambient temp

 0-50℃(32℉-122℉)

IP Rating

                                                              IP65
