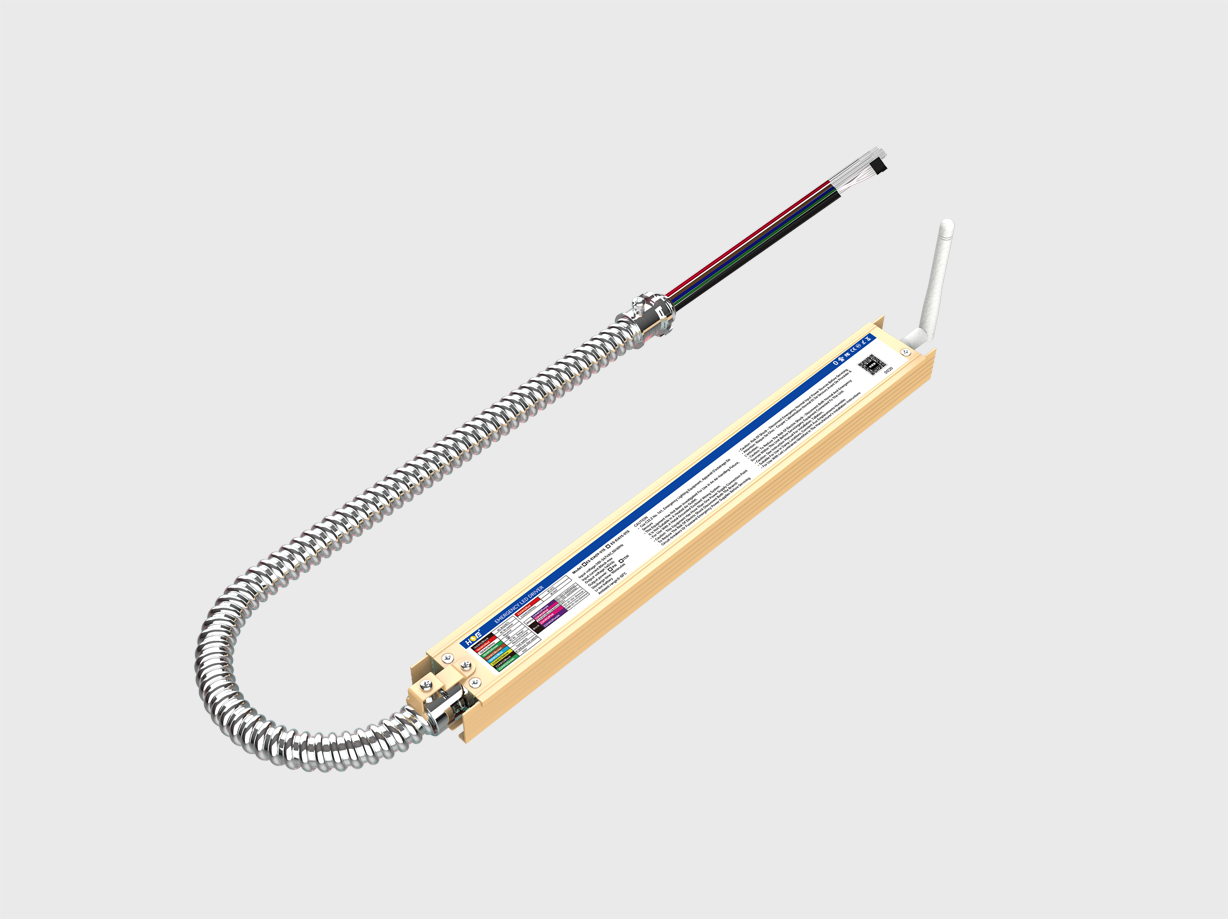

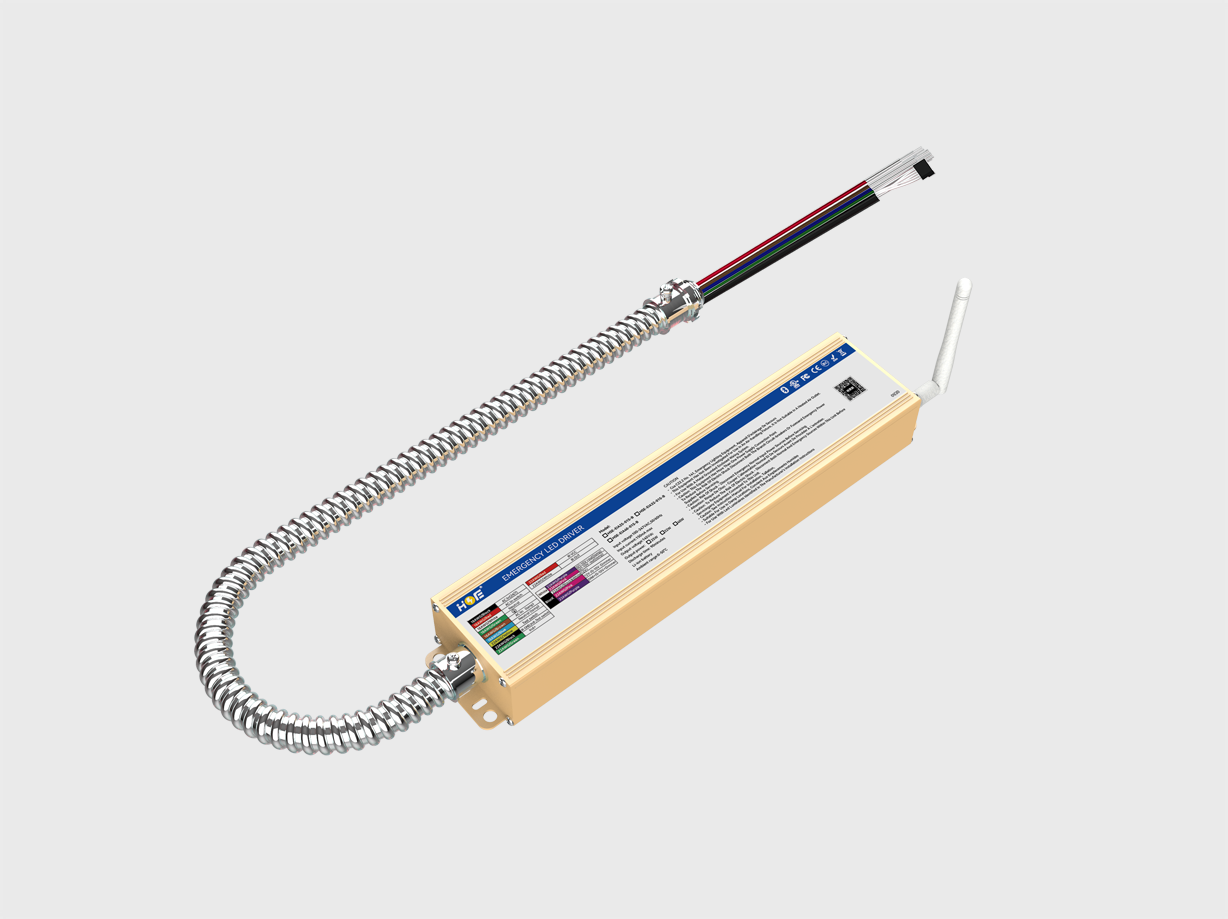

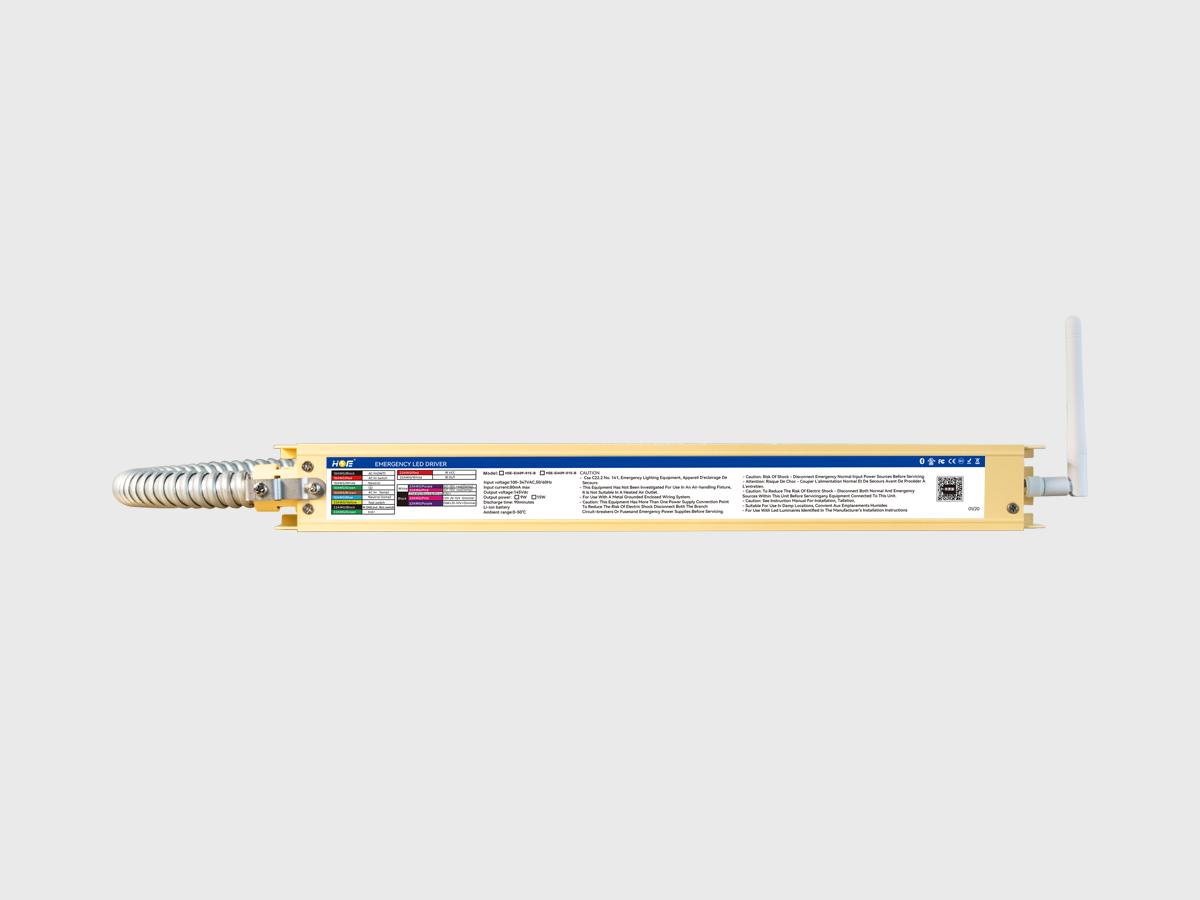

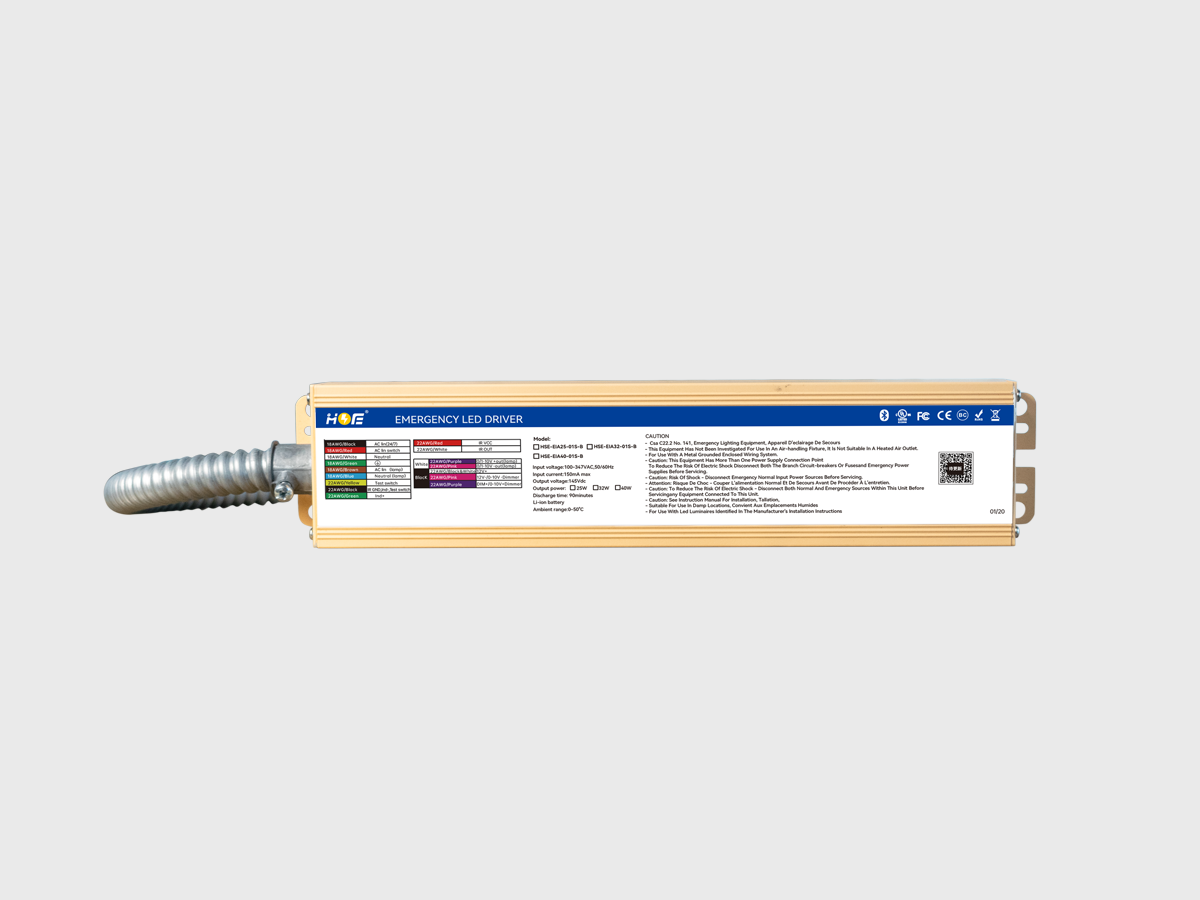

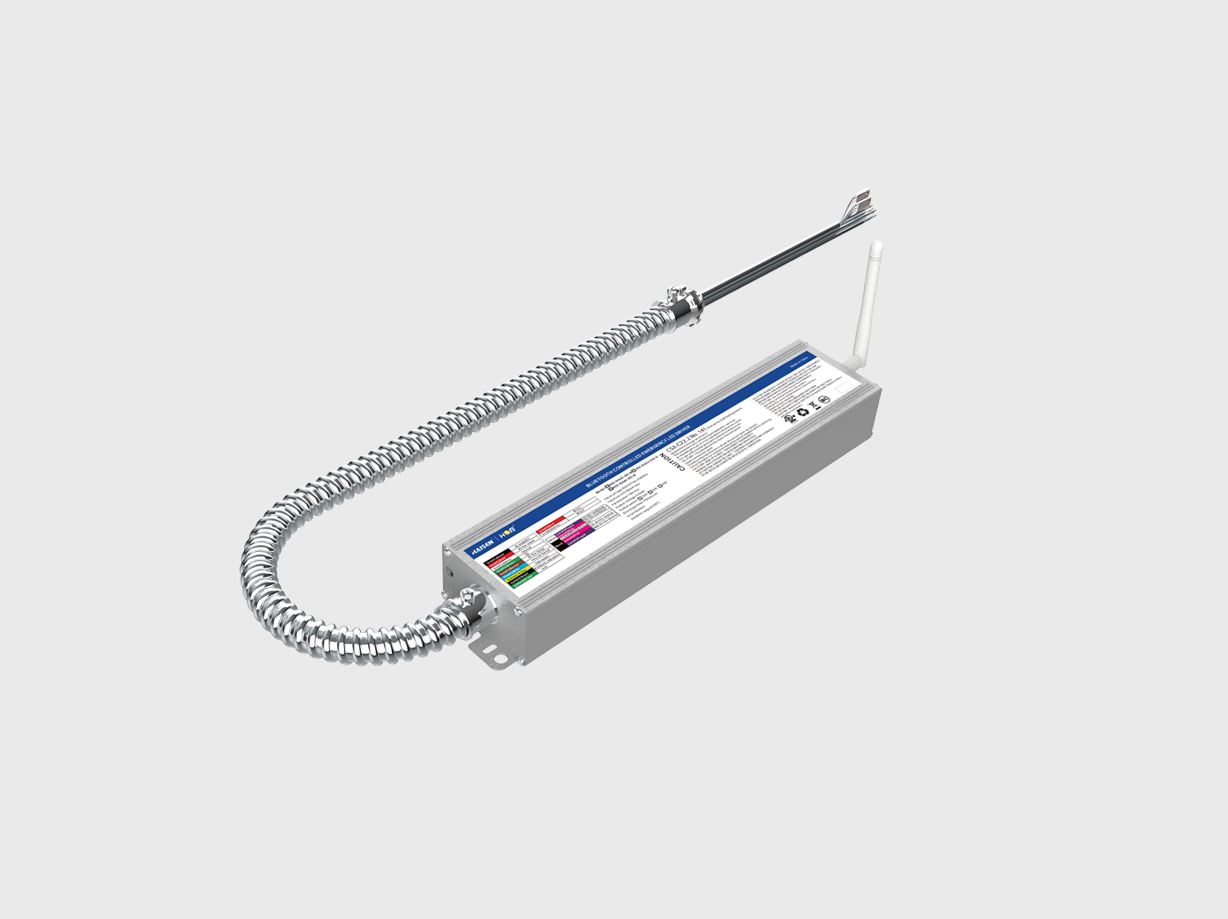

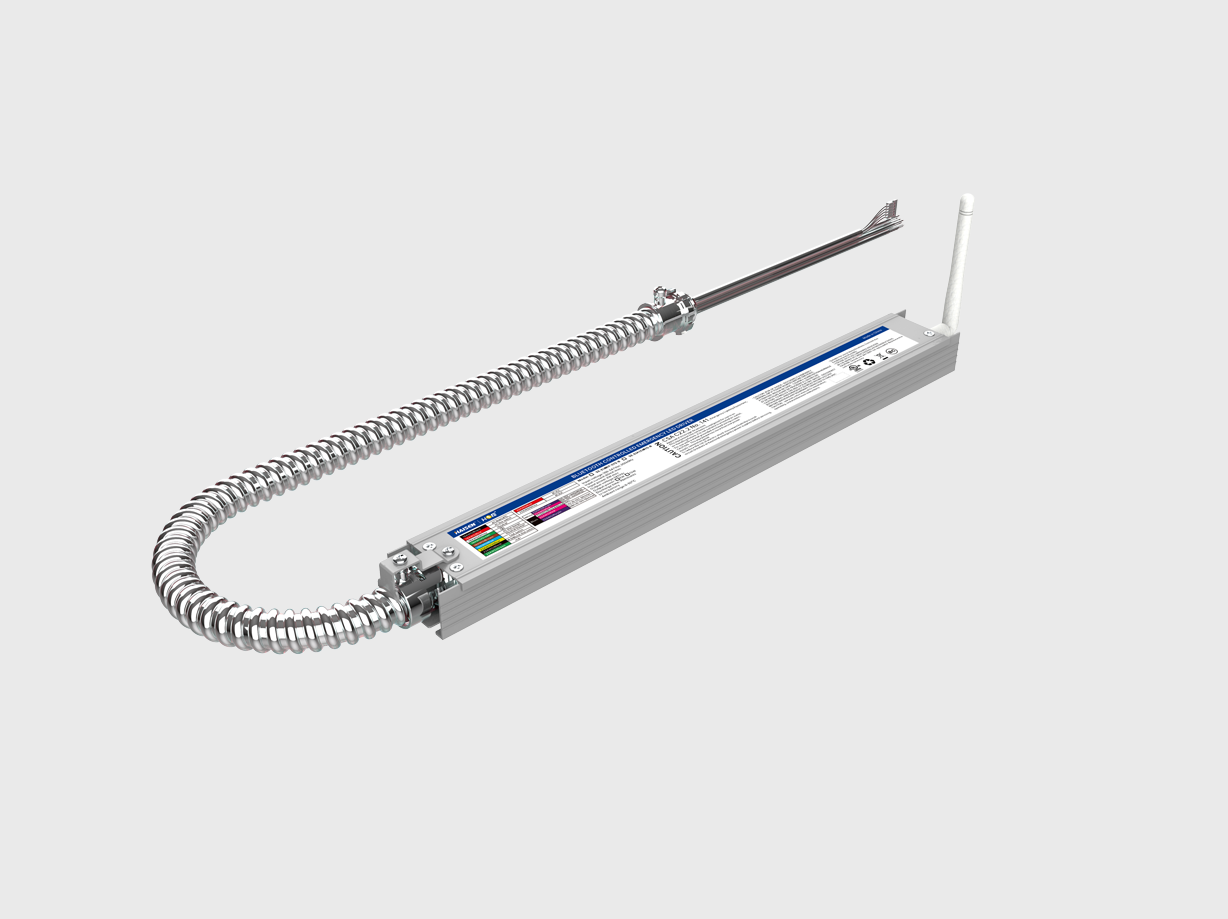

HSE-EIA-01S SERIES
AC solution EM for most 9~350W LED luminaire
UL listed for field or factory installation,CEC title 20 compliant
Monthly/annual self-testing
With multi-protection function：
Battery overcharge protection
Battery over-discharge protection
Output overload protection
Short-circuit protection
Open load protection
UL listed for field or factory installation,CEC title 20 compliant
Monthly/annual self-testing
With multi-protection function：
Battery overcharge protection
Battery over-discharge protection
Output overload protection
Short-circuit protection
Open load protection
|
Part Number |
HSE-EIA-01S |
|
Component Type |
Emergency Driver |
|
Input Voltage |
100-347VAC, 50/60Hz |
|
Input Current |
<0.1A max. |
|
Input power |
8W Max. |
|
Power factor |
0.6 @100VAC, 0.5@347VAC |
|
Input of LED load |
AC 6A Max. |
|
Output voltage |
145Vdc |
|
Batteruy |
Lithium |
|
Recharge duration |
＜24Hrs |
|
Emergency duration |
90mins |
|
Ambient temp |
0 - 50℃ (32℉ - 122℉) |
