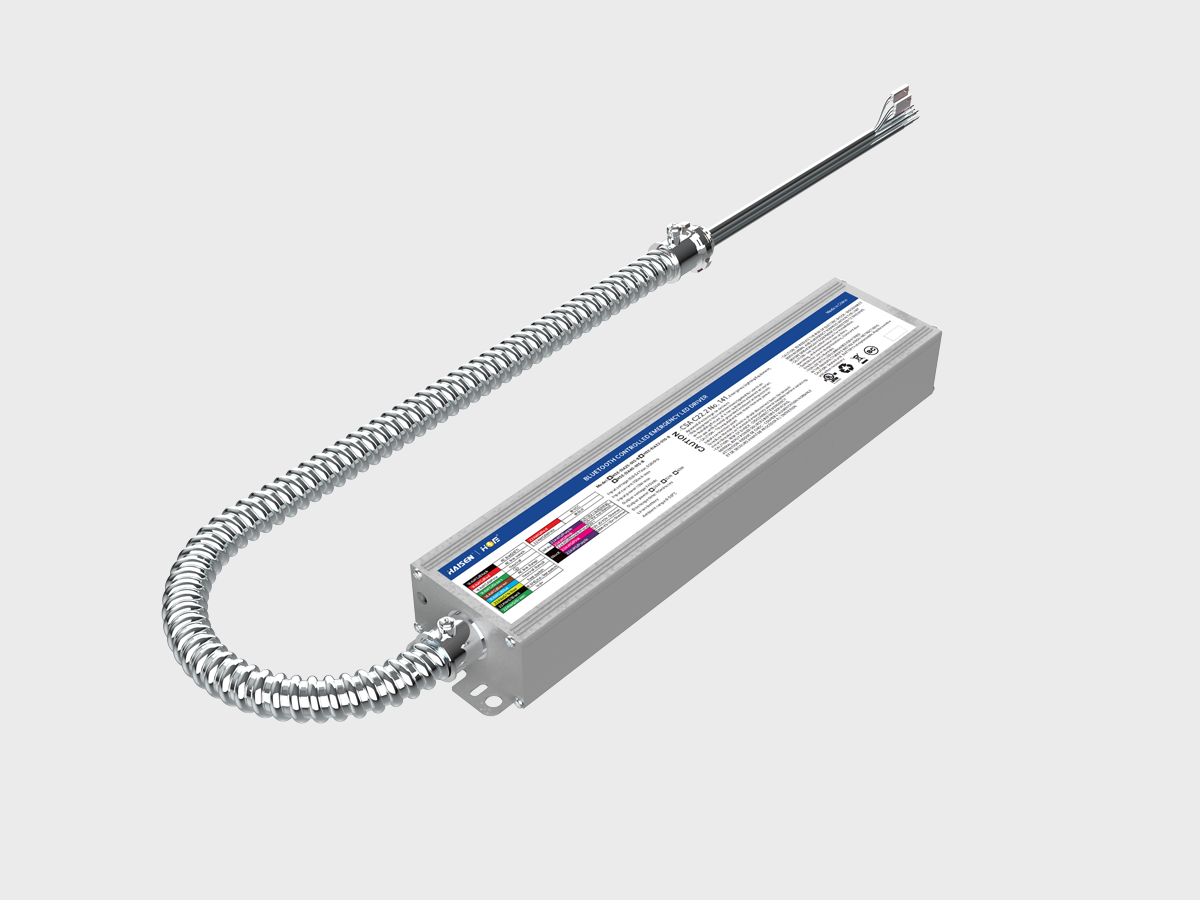

HSE-EIA-01S-CT Series
FEATURES
• Emergency operation of LED light source and luminaires in extreme temperature from -25°C ~ +50°C (-13°F ~ 122°F).
• UL listed for field or factory installation,CEC title 20 compliant .
• Compliance with American NFPA 101 life Safety Code.
• Easy wiring,connect with the input of LED driver directly.
• 2 -in- 1 LED test switch and indicator light included.
• Remote control , APP control for BLE version.
• Emergency operation of LED light source and luminaires in extreme temperature from -25°C ~ +50°C (-13°F ~ 122°F).
• UL listed for field or factory installation,CEC title 20 compliant .
• Compliance with American NFPA 101 life Safety Code.
• Easy wiring,connect with the input of LED driver directly.
• 2 -in- 1 LED test switch and indicator light included.
• Remote control , APP control for BLE version.
Technical Specifications
Component Type | Cold-pack Led Emergency Driver |
Input Voltage | 100-347VAC,50/60Hz |
Input Current | 0.1A max |
Input Power | 8W Max |
Power factor | 0.6 @100VAC, 0.5@347VAC |
Input of LED load | AC 6A Max |
Output voltage | 160V DC |
Battery | Li-ion |
Emergency wattage | 9W / 15W / 25W |
Recharge duration | ＜24Hrs |
Emergency duration | 90mins |
Ambient temp | -25°C-50℃(-13°F-122℉) |
IP Rating | IP65 |
Warranty | 5 years |
