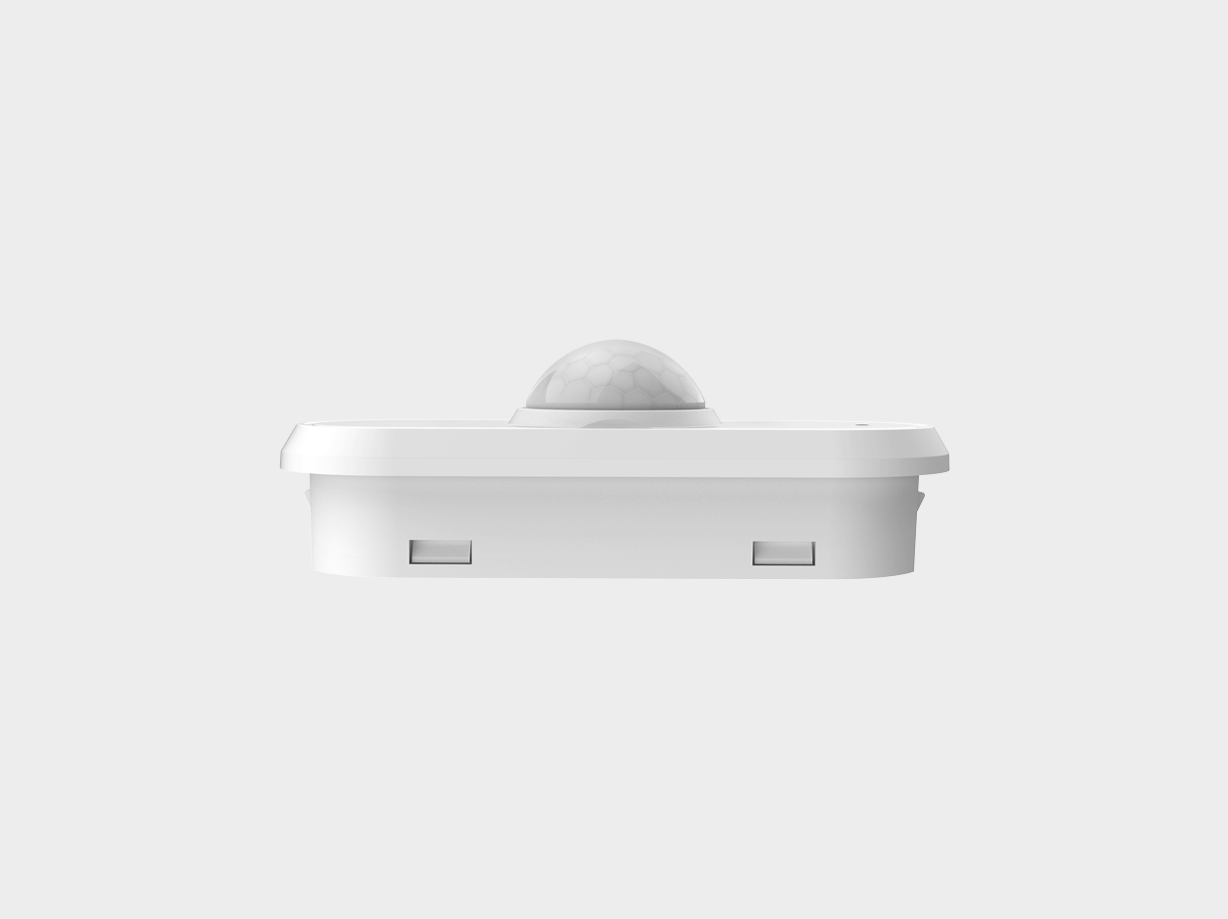

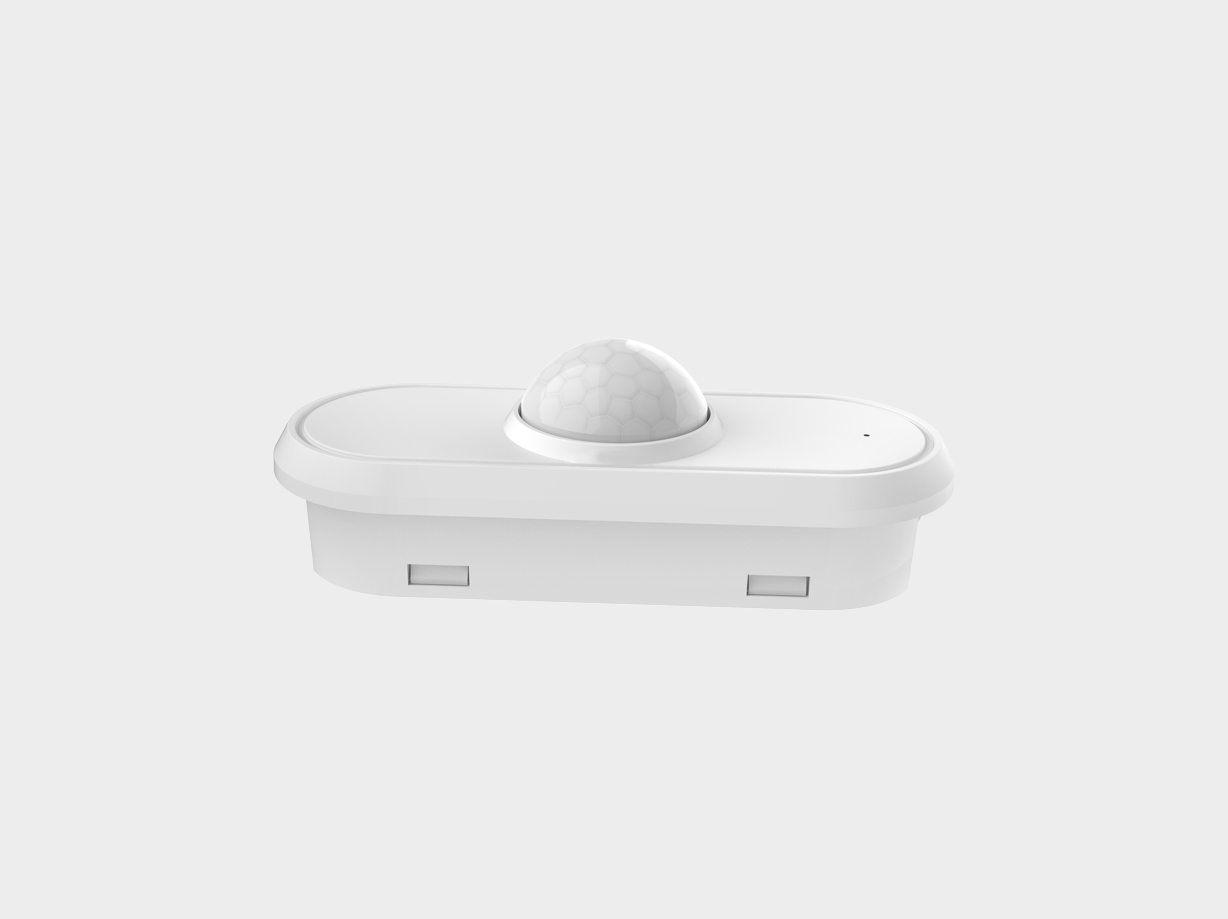

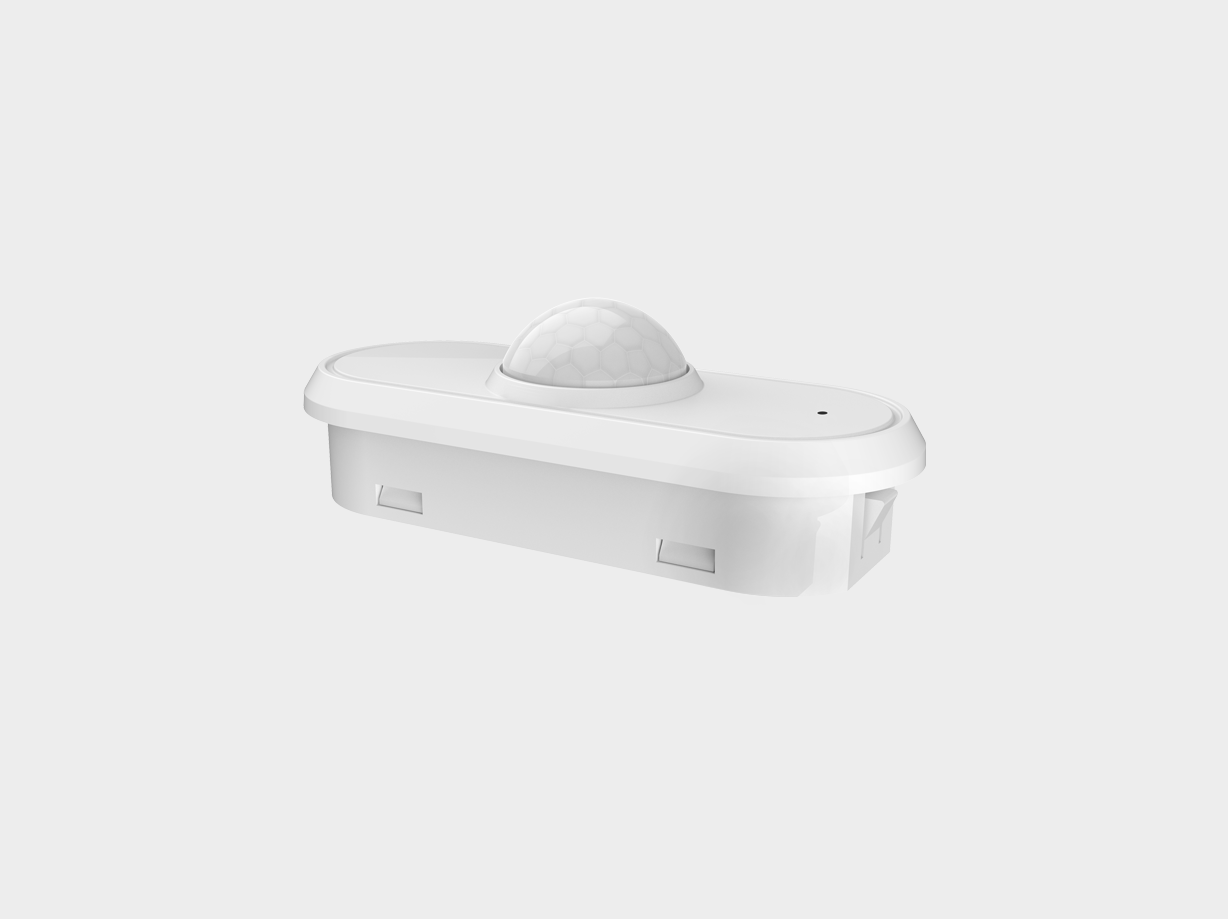

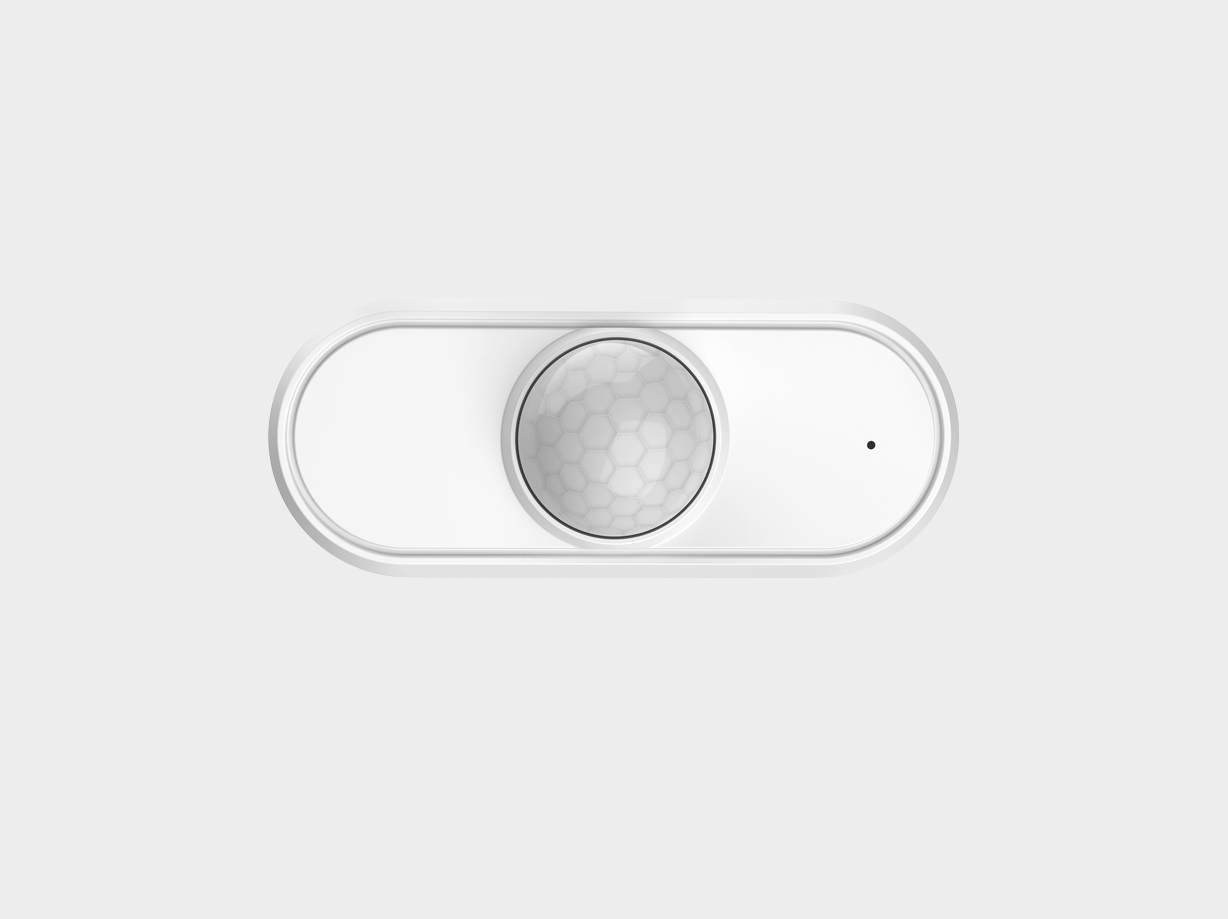

HSE-DSP2L-5

DESCRIPTION
• Plug& Play
• DALI-2 & D4i certified
• Motion sensor instance type 3 (303)
• Light sensorinstance type 4 (304)
• Seamlessly working with D4i drivers
• All sensor parameters can be set by DALI central controller

Technical Specifications

Component Type	DALI-2 & D4i Sensor
Input Voltage	Powered via DALI bus.
Input Current	10mA+5mA (Bus voltage 16V)
Output Signal	DALI-2/D4i
Functions	PIR Sensing (303) / Daylight detection (304)
Detection Area	DALI master setting
Daylight Sensor	DALI master setting
Stand-by dim level	DALI master setting

Detection Angle	120-360 ° Fresnel Lens
Mounting Height	< 4 m / 13 ft
Detection Range	Radius: 3-7 m 10–23 ft
Operating Temperature	-30℃~+60℃
IP Rating	IP20
Warranty	5 years
