PRODUCTS > HSE-DSP1H-3

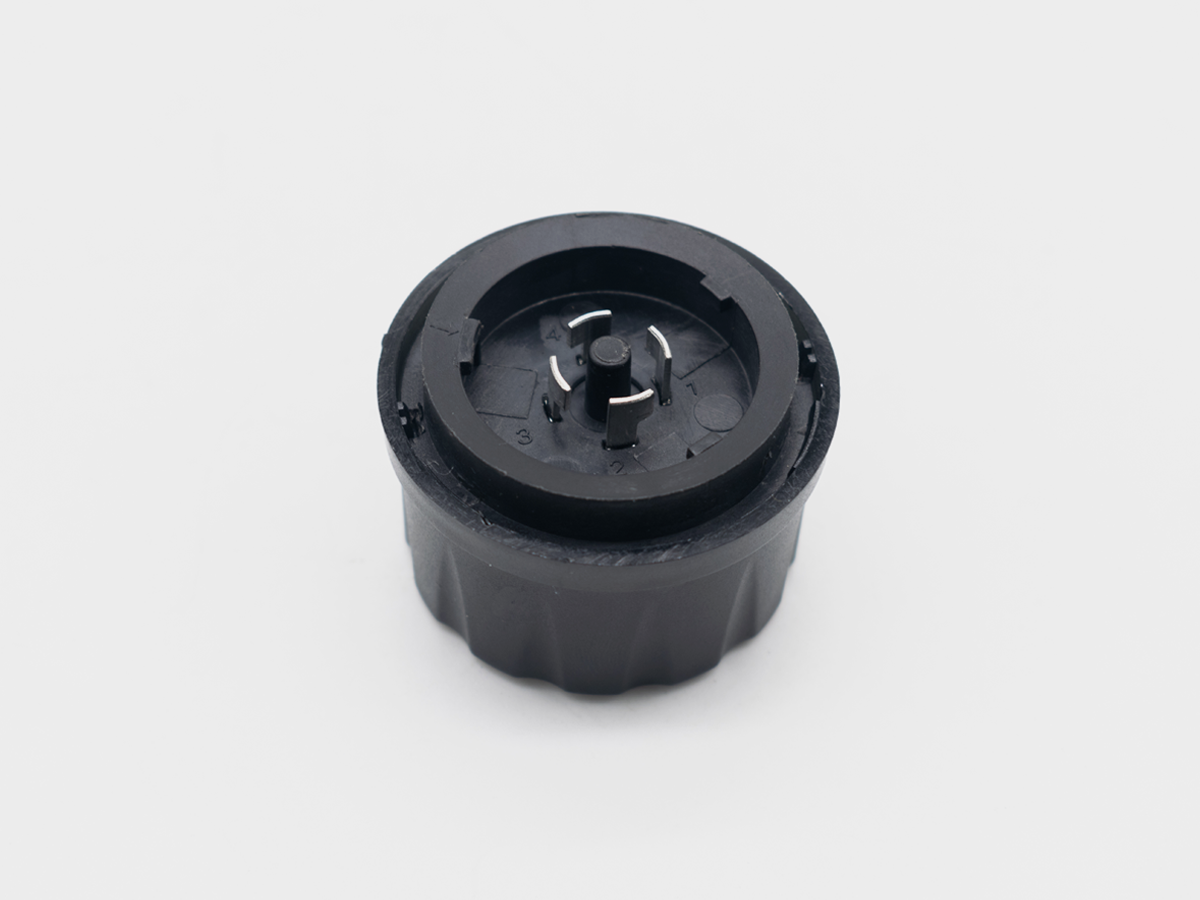

HSE-DSP1H-3

DESCRIPTION
• DALI-2 & D4i certified
• Motion sensor instance type 3 (303)
• llluminance measurement
• Light sensorinstance type 4 (304)
• Autonomous sensor-based control
• Seamlessly working with D4i drivers
• With Zhaga Book 18 Receptacle
• Plug& Play

Technical Specifications

Component Type	Highbay DALI-2 & D4i Sensor
Input Voltage	Powered via DALI bus.
Input Current	<30mA
Stand-by Power	DC 12V@<0.5W
Output Signal	DALI-2 / D4i
Detection Area	DALI master setting
Daylight Sensor	DALI master setting
Stand-by dim level	DALI master setting

Detection Angle	30-150 ° Without Glass Cover.
Mounting Height	≤12m / 39ft
Detection Range	Radius: 8m / 26ft
Operating Temperature	-20°C~+60°C
IP Rating	IP65
Warranty	5 years

Spec Sheet

HSE-DSM1H-3.pdf

Online browsing Download
