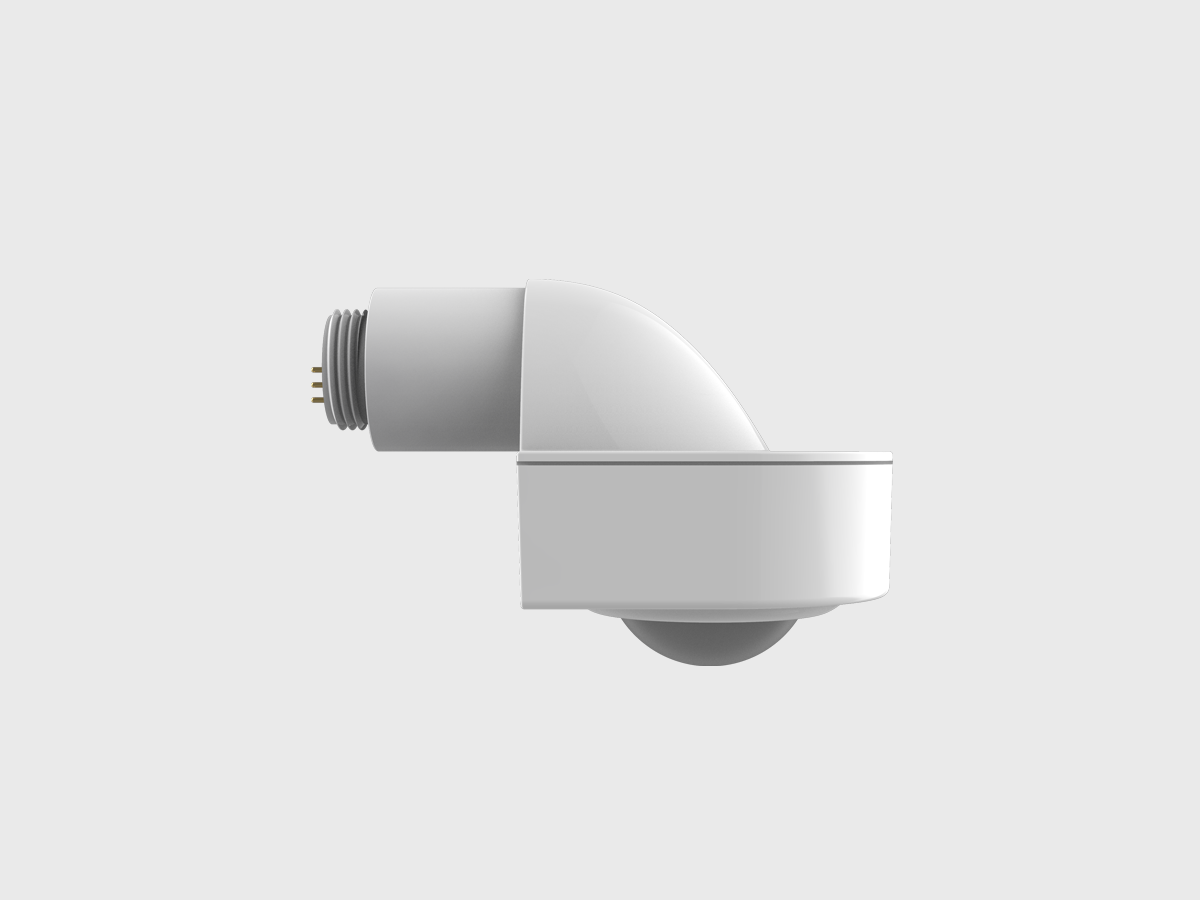

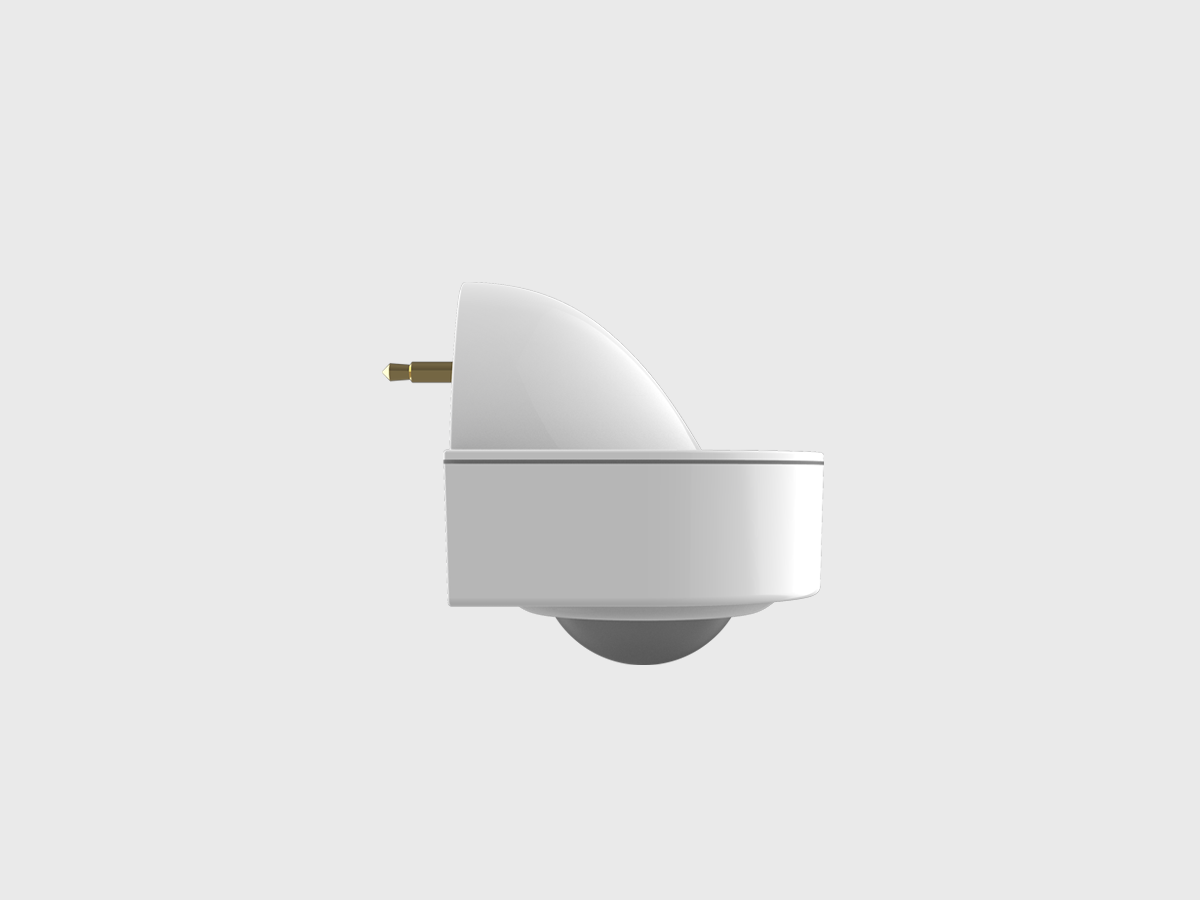

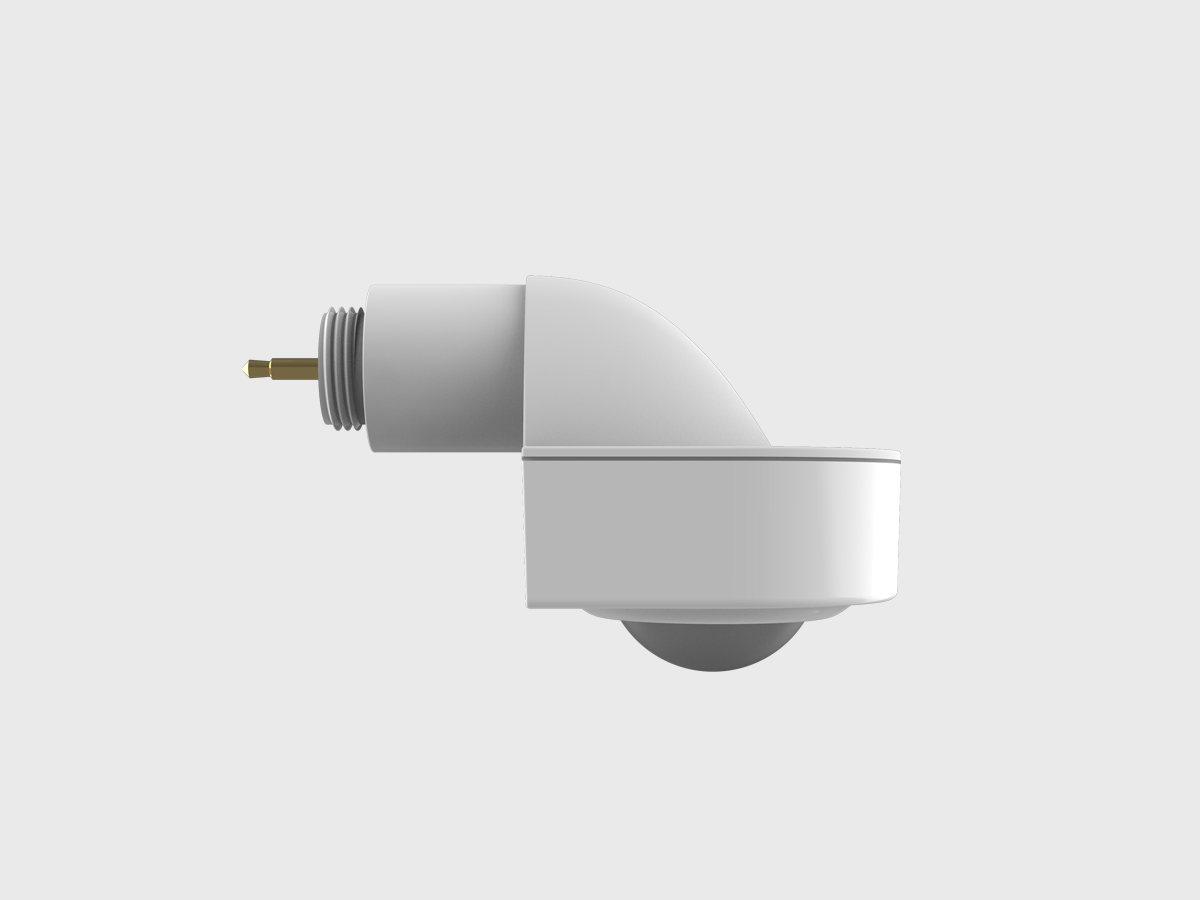

HSE-XSP11H Series
DESCRIPTION
This series of products is a high - bay sensor, with an installation height ≤12m, and is suitable for indoor and outdoor spaces such as warehouses, factories, and parking lots.
FEATURES
• 12VDC，0-10V Dimming.
• With Daylight Harvesting and Photocell Function.
• BLE Version with APP control & Regular Version with remote control both available.
• Application：Linear high bay, Linear strip, wrap.
This series of products is a high - bay sensor, with an installation height ≤12m, and is suitable for indoor and outdoor spaces such as warehouses, factories, and parking lots.
FEATURES
• 12VDC，0-10V Dimming.
• With Daylight Harvesting and Photocell Function.
• BLE Version with APP control & Regular Version with remote control both available.
• Application：Linear high bay, Linear strip, wrap.
Technical Specifications
Component Type | High - bay PIR Sensor |
Input Voltage | DC 12-24V |
Input Current | <30mA (Regular-Version) <20mA (Bluetooth-Version) |
Stand-by Power | DC10V@<0.5W |
Control Method | DIM 0-10V |
Control Device | Remote Control & Manual Switches & HSE WISE APP |
Bluetooth Transmit | 30m / 98ft |
Radio Frequency | 2.4GHz (2402~2480MHz) |
Bluetooth Version | 5.4 |
Detection Angle | 120-360° (Fresnel Lens) |
Mounting Height | 12m / 39ft Max. |
Detection Range | Radius: 3-7m (9.84-22.97ft) |
Working Temp | -20℃ to +60℃ |
IP Rating | IP65 (With Elbow) IP20 (No Elbow) |
Warranty | 5 years |
