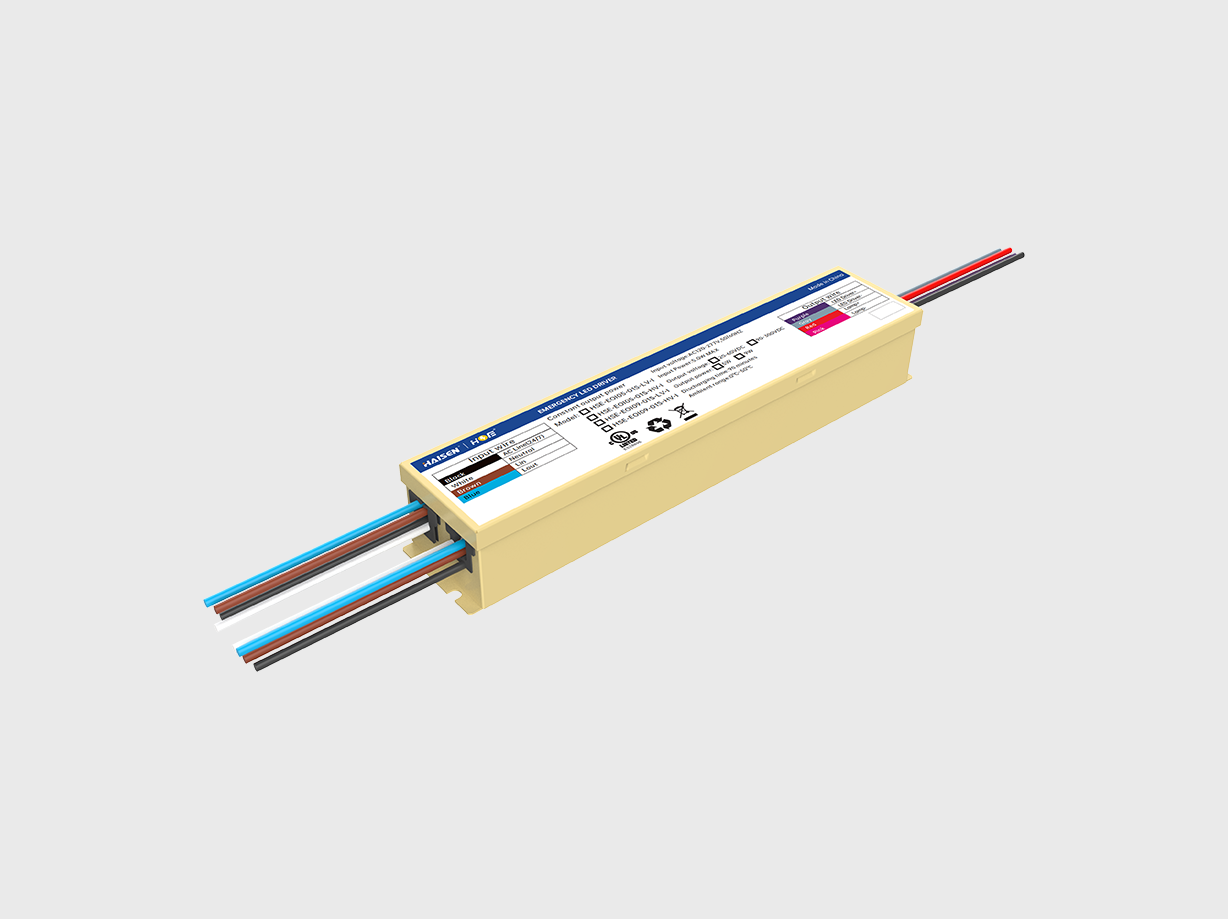

HSE-EOI-01S-I-1 Series

FEATURES
• A constant power output LED emergency driver, wide output voltage range, constant output power with high precision;
• Remote control , APP control for BLE versio
• Monthly/Annually self-inspection.

Technical Specifications

Component Type

EM driver for LED hook-up

Input Voltage

120-277VAC,50/60Hz

Input Current

0.08A max

Input Power

7W Max

Power Factor

0.6 @120VAC, 0.5@277VAC

Output Voltage

20-54V DC / 300V DC Max.

Battery

 LiFePO4 / Li-ion

Emergency wattage

4W (LiFePO4) / 5W / 8W / 11W (Li-ion)

Recharge duration

＜24Hrs

Emergency duration

90mins

Ambient temp

LiFePO4 (32℉-140℉) / Li-ion (32℉-122℉)

IP Rating

                                                              IP20
