PRODUCTS > HSE-EOC-02S Series

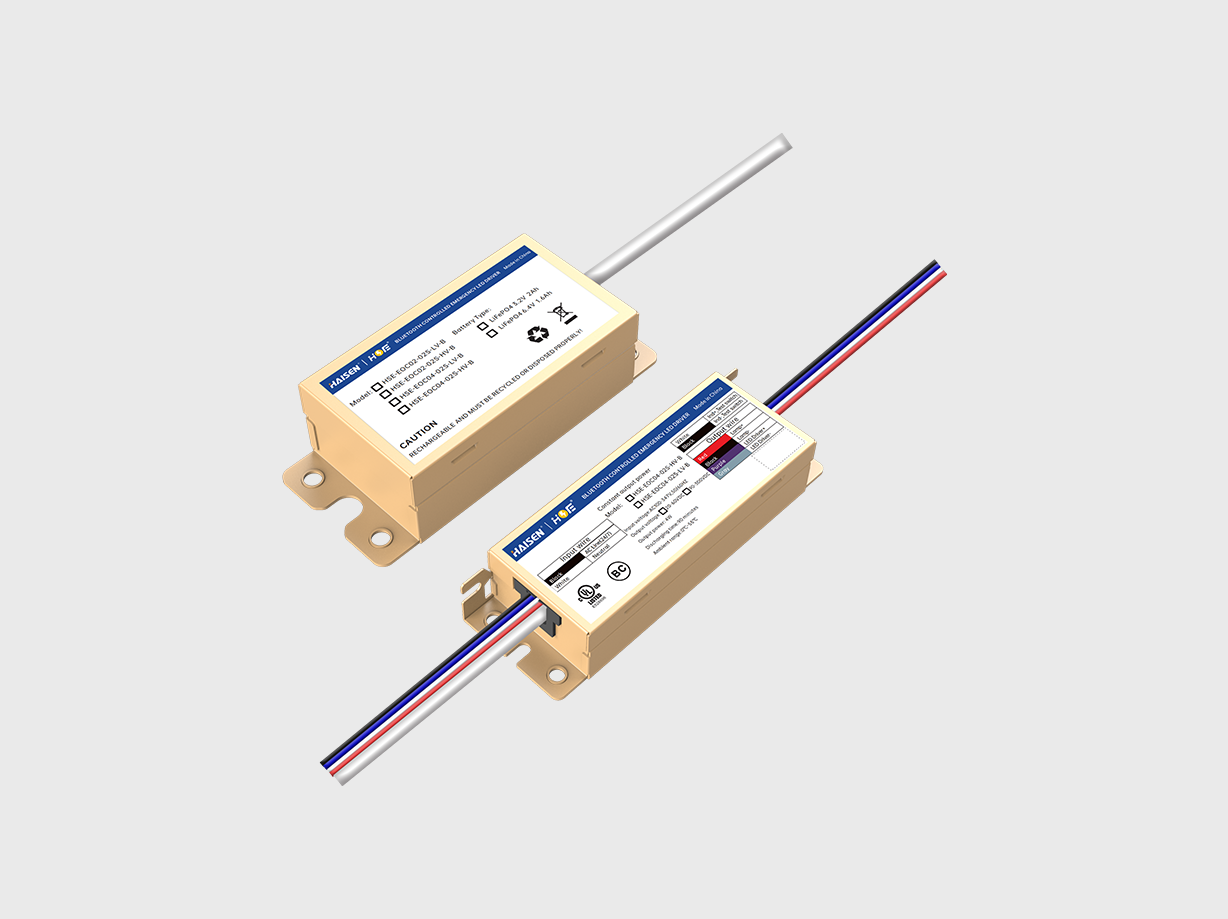

HSE-EOC-02S Series

FEATURES
• UL listed for field or factory installation,CEC title 20 compliant .
• Compliance with American NFPA 101 life Safety Code.
• Constant output power.
• Remote control , APP control for BLE version.
• 2 -in- 1 LED test switch and indicator light included.
• Manual testing via remote control (optional).
• Monthly/annual self-testing.

Technical Specifications

Component Type	Emergency driver for LED hook-up
Input Voltage	100-347VAC,50/60Hz
Input Current	0.05A max
Input Power	5W Max
Power factor	0.5 @120VAC
Output voltage	20-60VDC / 90-300V DC

Battery	LiFePO4
Emergency wattage	2W / 4W
Recharge duration	＜24Hrs
Emergency duration	90mins
Ambient temp	0-50℃(32℉-122℉)
IP Rating	IP20

Spec Sheet

HSE-EOC 2-4W.pdf

Online browsing Download
