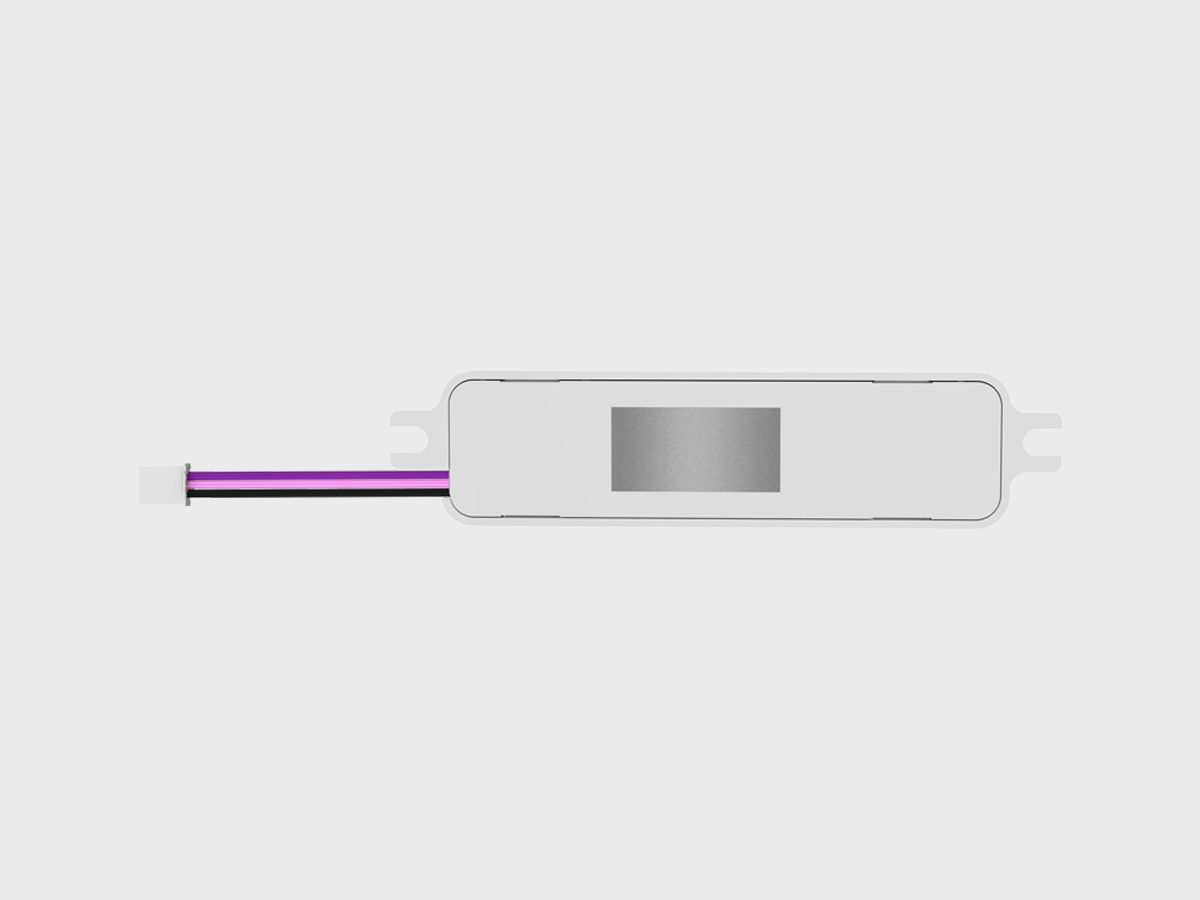

HSE-BSM5L-5

FEATURES
• 12VDC，0-10V Dimming.
• With Daylight Harvesting and Photocell Function.
• Can be configured and controlled via the HSE WISE app.
• Square module part, with magnet for easy installation.

Technical Specifications

Component Type

Integrated Microwave Sensor

Input Voltage

DC 10-15V

Input Current

<15mA

Stand-by Power

DC10V@<0.5W

Control Method

DIM 0-10V

Control Device

                                      HSE WISE APP

Bluetooth Transmit

30m / 98ft

Radio Frequency

2.4GHz (2402~2480MHz)

Bluetooth Version

5.4

Detection Angle

30-150°（Without Glass Cover)

Mounting Height

<4m/13ft

Detection Range

Radius: 2-4m (6.56-13.12ft)

Working Temp

-25℃ to +60℃

IP Rating

                                                              IP20

Warranty

5 years
